Hydrostatic pressure is one of the main reasons concrete coatings fail. When water pushes upward through the tiny pores in concrete, it creates pressure beneath impermeable coatings. This pressure can cause bubbling, peeling, or even large sections of the coating to detach. Common in regions with high groundwater levels or heavy runoff, such as North Idaho and Eastern Washington, this issue often stems from moisture trapped under coatings, leading to structural and aesthetic problems.

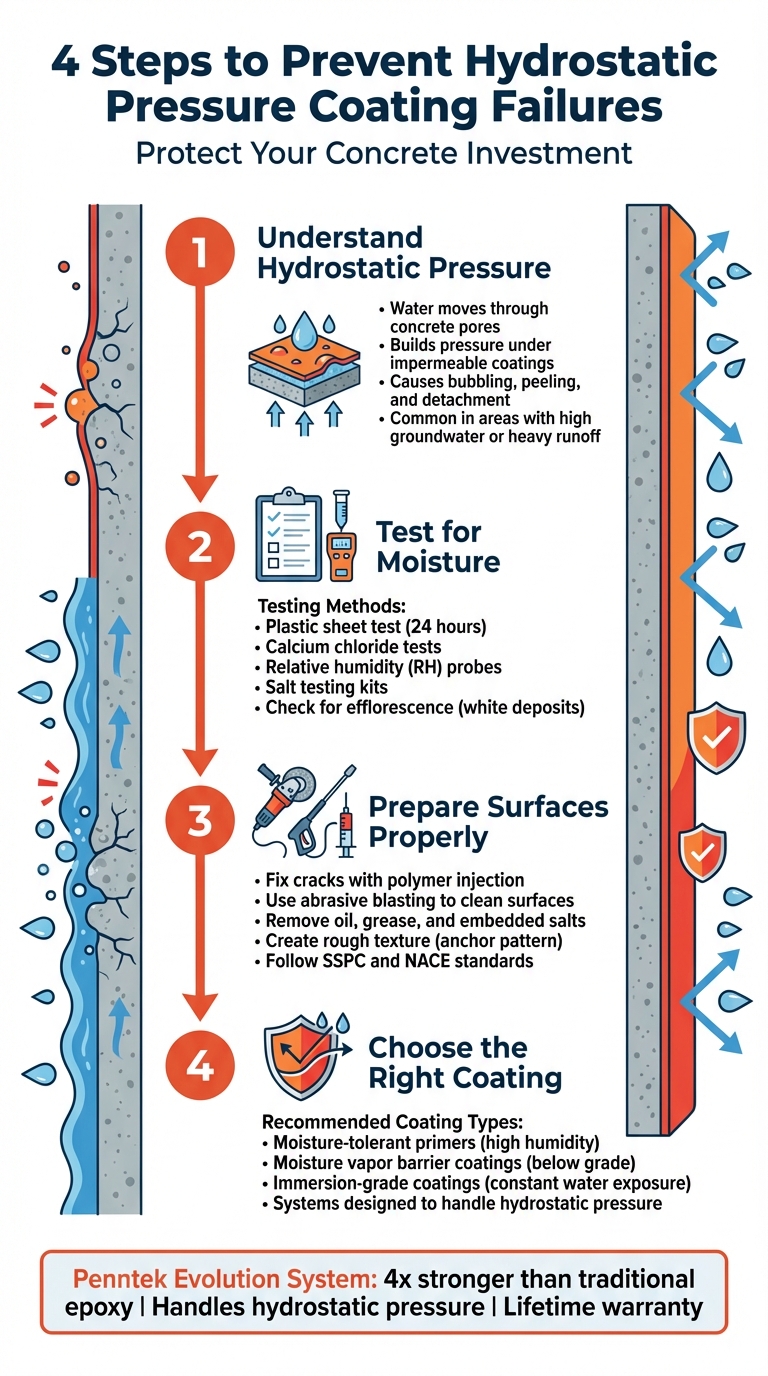

Key Points to Prevent Coating Failures:

• Understand Hydrostatic Pressure: It’s caused by water moving through concrete and building pressure under coatings.
• Test for moisture levels: Use tools like plastic sheet tests, calcium chloride tests, or RH probes to detect moisture levels.
• Prepare Surfaces Properly: Fix cracks, clean surfaces, and create a rough texture for better coating adhesion.
• Choose the Right Coating: Use moisture-resistant systems like the Penntek Evolution, designed to handle hydrostatic pressure.

Epoxy Floor Failure/ Moisture Remediation/How To Fix/Moisture Barriers/ #surfaceit#surfaceit805

sbb-itb-a0e5ae3

What is Hydrostatic Pressure?

Hydrostatic pressure, also known as hydrostatic head, refers to the force exerted by stagnant water pushing upward from beneath a concrete foundation or slab.

Carrie Powers from Polyguard explains, "Hydrostatic pressure occurs when gravity pushes stagnant water against below-grade walls built partially or entirely below the water table or on a hillside."

This pressure becomes more intense as the water beneath the slab gets deeper or as the surrounding soil becomes more saturated.

How Hydrostatic Pressure Builds Under Concrete Slabs

Concrete naturally contains tiny capillaries formed during the curing process. Water travels upward through these small channels. When an impermeable coating is applied to the concrete, it traps the water, creating pressure. Over time, this pressure can cause issues like blistering or the detachment of the coating.

Environmental Factors That Cause Hydrostatic Pressure

Local climate and soil conditions play a big role in amplifying hydrostatic pressure. For example, heavy seasonal runoff and elevated groundwater levels can significantly increase soil saturation. In areas like North Idaho and Eastern Washington, factors such as snowmelt, proximity to creeks or ponds, and naturally high groundwater levels contribute to this problem. Additionally, soil composition can worsen the situation. Unstable moisture levels or soils rich in organic matter can lead to uneven settling and ongoing moisture issues beneath the slab. Properties located on hillsides or in low-lying areas where water tends to collect face an even higher risk.

Understanding the buildup of hydrostatic pressure is key to identifying how it can damage concrete coatings.

How Hydrostatic Pressure Damages Coatings

Hydrostatic pressure can wreak havoc on concrete coatings, primarily through the forces it exerts and the way it interacts with moisture beneath the surface.

When moisture gets trapped under an impermeable coating, it starts building pressure. This pressure weakens the bond between the coating and the concrete surface. One culprit here is osmotic pressure, which happens when water is drawn toward soluble salts on the concrete. This creates a pressure imbalance that pushes the coating away from the surface . Things get worse when heat – whether from sunlight or interior warmth – turns trapped moisture into vapor. This expanding vapor adds even more pressure, further damaging the coating.

Charlie "The Grout Geek" Lerman from Alchatek explains: "Water intrusion is a common cause of coating failures. When water seeps into a structure, it can compromise the coating’s adhesion to the substrate, leading to various forms of deterioration".

As Marvel Industrial Coatings states: "A coating system is only as good as its bond to the substrate".

The damage caused by these pressures typically falls into two categories: the internal effects of moisture migration and vapor pressure buildup, and the outward, visible signs like blistering, peeling, or delamination.

Moisture Migration and Vapor Pressure Buildup

Concrete is full of tiny capillaries that allow moisture to move through it. When water vapor reaches the underside of an impermeable coating, it gets trapped. Heat – whether from the sun or interior spaces – turns this moisture into vapor, which expands and pushes upward. This force weakens the bond between the coating and the concrete.

The issue becomes even more severe when coatings are too rigid to handle the natural movement of the concrete. For instance, some epoxy coatings lack the flexibility to adjust to the expansion and contraction caused by temperature changes or moisture fluctuations. When this happens, cracks form, allowing even more moisture to seep in, accelerating the failure process. Studies conducted in simulated environments with pressures of 31 MPa have shown that microscopic defects in coatings can lead to corrosion currents up to 50 times higher than in well-sealed coatings after just 300 hours of immersion.

Ultimately, these internal pressures lead to visible damage on the surface, as outlined below.

Visible Signs of Hydrostatic Pressure Damage

Spotting early signs of coating failure can help limit further damage. Common indicators include blistering and bubbling, which appear as raised bumps caused by expanding gas or moisture vapor trapped underneath. Peeling is another telltale sign, often occurring at edges or joints where the bond has weakened, allowing moisture to lift the coating away from the surface. Delamination, where large flakes or sheets of the coating come loose, signals a complete loss of adhesion due to moisture infiltration or inadequate surface preparation.

Other signs to watch for include a cloudy or milky appearance, which points to moisture penetration, and cracking patterns. These cracks can range from fine lines to deeper fissures (commonly referred to as alligatoring) and typically result from internal shrinkage stress or the coating’s inability to adapt to substrate movement. In extreme cases, corrosion pits may form, appearing as hollowed-out areas where the coating has collapsed due to substrate degradation. Moisture can also encourage microbial growth, further speeding up the deterioration process.

Recognizing these signs early is crucial, as they confirm the internal damage mechanisms at play.

How to Prevent Coating Failures From Hydrostatic Pressure

Hydrostatic pressure can wreak havoc on coatings if moisture issues aren’t addressed beforehand. As Sherwin-Williams emphasizes: "The foundation of any successful coating system is surface preparation". Even the most advanced coatings won’t hold up without proper testing and preparation.

Testing for Moisture and Hydrostatic Pressure

Before applying any coating, it’s vital to test for moisture. One simple method is the plastic sheet test: tape a 2 ft x 2 ft plastic sheet to the concrete surface for 24 hours. If water droplets form underneath, it indicates hydrostatic pressure. Similarly, the presence of efflorescence – those white, chalky mineral deposits – signals water migration through the slab.

For more precise measurements, other tools and techniques are available:

• Calcium chloride tests: These measure the rate of moisture vapor emission.
• Relative humidity (RH) probes: Embedded in the concrete, these provide accurate readings of internal moisture levels.
• Salt testing kits: Useful for detecting soluble chlorides, which can cause osmotic blistering, especially in coastal or industrial settings.

Additionally, during surface grinding, if the concrete darkens immediately upon exposure, it’s often a sign of moisture pushing up from below. Identifying these issues early ensures the surface is ready for proper preparation.

Proper Surface Preparation and Coating Selection

Once moisture problems are identified, they must be resolved before applying any coating. Start by addressing leaks or cracks. Techniques like polymer injection – using polyurethane grout or epoxy – can seal water-bearing cracks and create a waterproof barrier.

Surface preparation is equally critical. Abrasive blasting not only removes contaminants like oil, grease, and embedded salts but also creates a concrete surface profile that enhances coating adhesion.

Choosing the right coating is just as important:

• Moisture-tolerant primers: These are ideal for high-humidity environments, as they maintain adhesion even when moisture is present during application.
• Moisture vapor barrier coatings: Perfect for concrete slabs on or below grade, these seal the concrete’s capillary voids, reducing water vapor seepage.
• Immersion-grade coatings: Designed for areas with constant water exposure, these protect against blistering and delamination, which standard coatings can’t handle.

Following industry standards like SSPC and NACE ensures the substrate meets the required cleanliness and surface profile levels, laying the groundwork for a durable coating system.

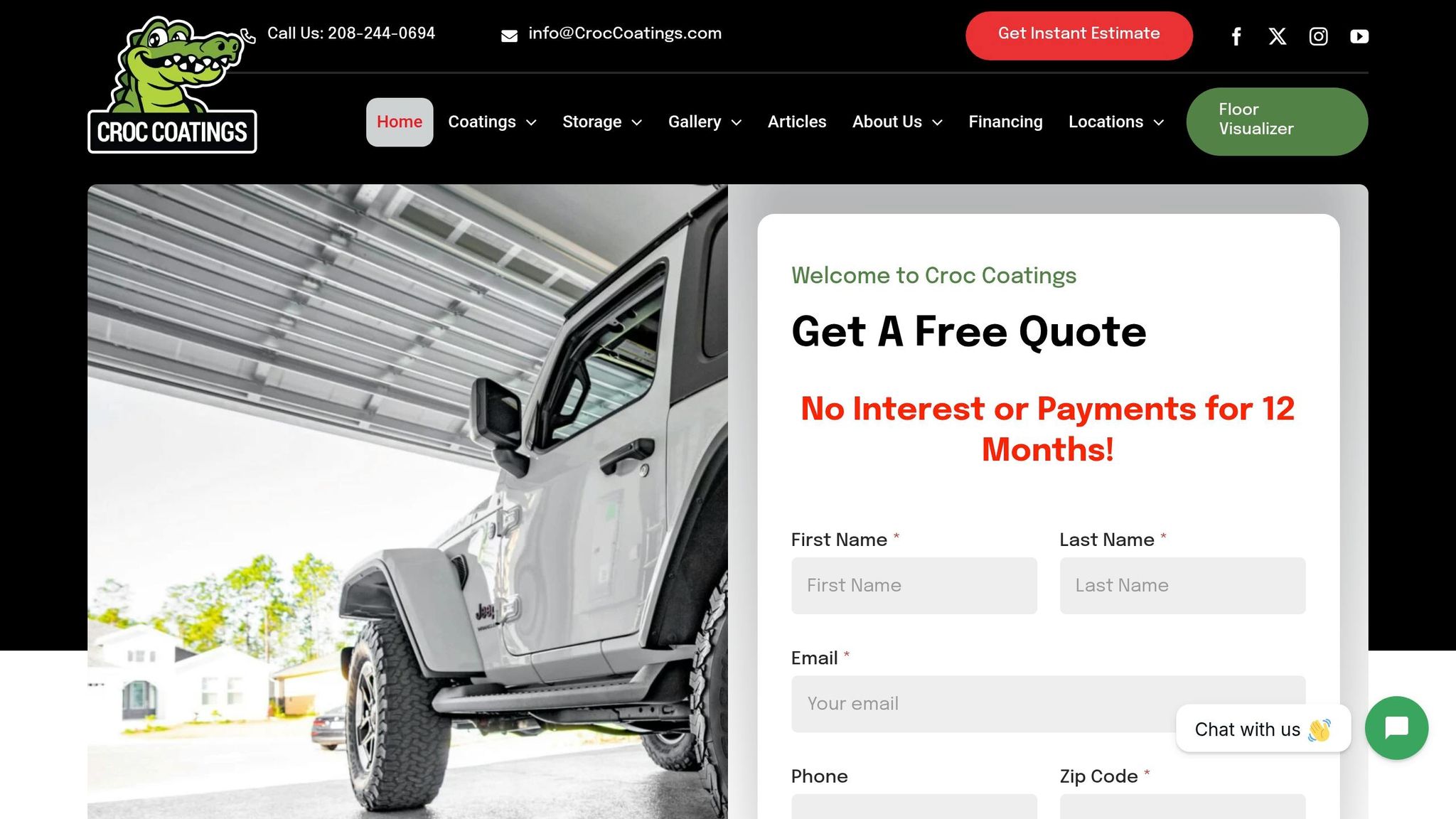

How Croc Coatings Solves Hydrostatic Pressure Problems

Hydrostatic pressure can wreak havoc on standard coatings, causing them to fail under the strain of moisture. Croc Coatings steps in with a tailored solution designed to combat these moisture-related issues. Operating in North Idaho and Eastern Washington – covering areas like Spokane and Tri-Cities, WA – the company provides concrete coatings specifically built to endure the challenges of moisture migration that typically ruin conventional floor finishes.

Here’s how Croc Coatings tackles the problem head-on.

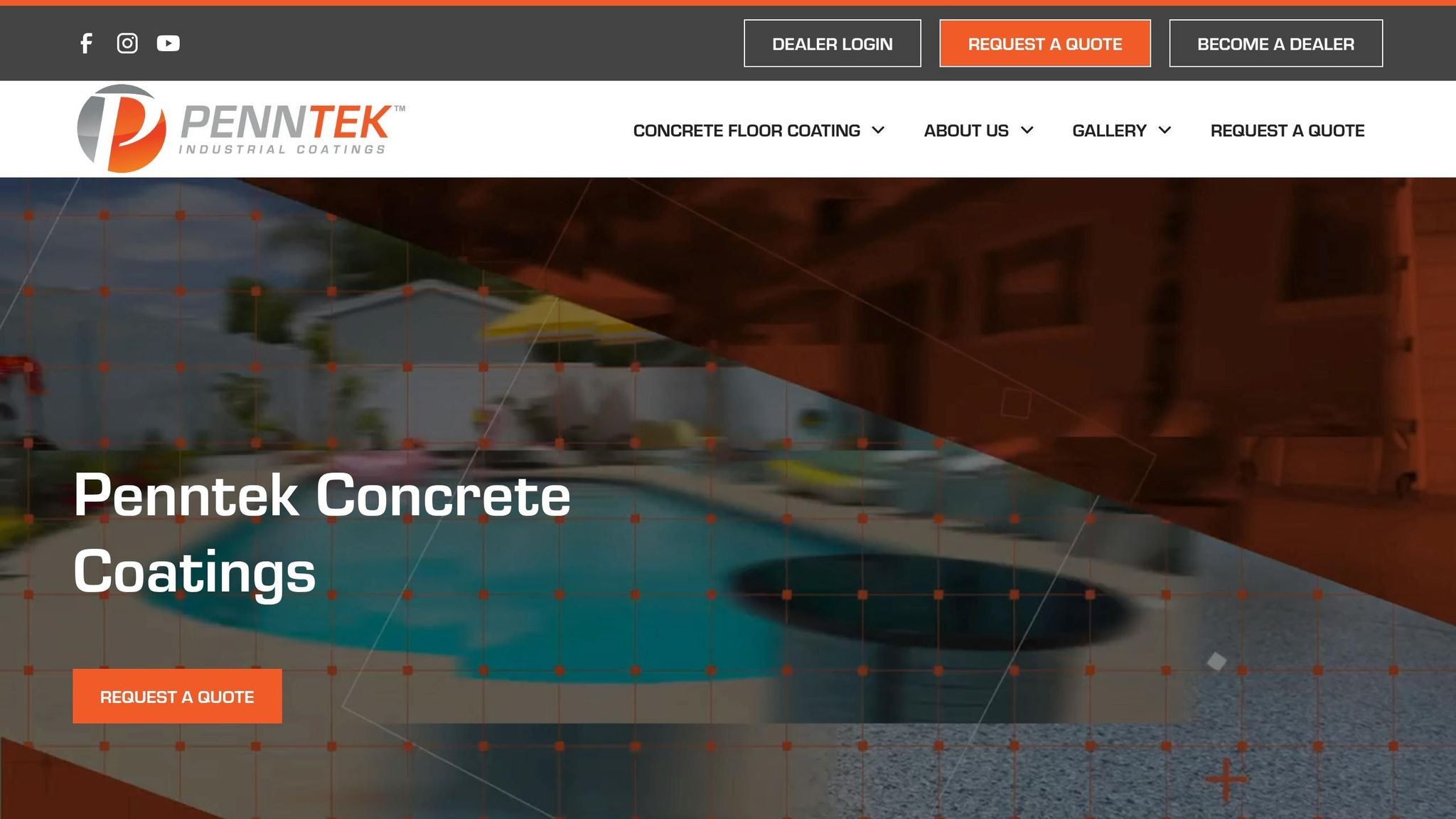

Penntek Evolution System Features

The Penntek Evolution system is built to withstand the upward force of moisture, offering a solution that’s 4x stronger than traditional epoxy coatings. This added strength, combined with superior adhesion, allows it to resist the delamination caused by moisture buildup. Unlike standard epoxy coatings that blister and peel when water vapor gets trapped, the Penntek system is engineered to prevent such failures.

Key features of the system include:

• UV stability: Prevents yellowing and brittleness due to sun exposure.
• Slip resistance: Ensures safety, even when the surface is wet.
• Antibacterial and antimicrobial properties: Maintain a healthier environment.
• Lifetime warranty: A testament to its durability and long-term performance.

The chart below highlights the differences between the Penntek Evolution system and standard epoxy coatings:

Feature	Penntek Evolution System	Standard Epoxy Coatings
Strength	4x the strength of traditional epoxy	Standard industrial strength
Moisture Resistance	High (handles hydrostatic pressure)	Prone to blistering/delamination
Installation	One-day professional application	Often requires multiple days
Durability	UV stable and slip-resistant	May yellow or become brittle over time
Warranty	Lifetime coverage	Limited or short-term

This advanced formulation, paired with expert installation, ensures the system performs reliably in tough conditions.

One-Day Installation by Certified Professionals

Proper application is critical for addressing hydrostatic pressure. As Matt Sokol, VP of Sales and Marketing at Advanced Polymer Coatings, explains:

"One of the essential steps in applying a coating is surface prep. Proper adhesion between the substrate and the coating requires adequate surface preparation".

Croc Coatings’ certified professionals excel in identifying and addressing moisture issues during the surface preparation process. Their expertise ensures that every step, from grinding to coating, is handled with precision. The one-day installation process is another advantage, reducing the risk of environmental factors – like rain – affecting the foundation and increasing water pressure. This efficient and thorough approach results in a durable coating system that safeguards your investment for years to come.

Conclusion

Hydrostatic pressure can wreak havoc on coating integrity. When moisture builds up beneath a concrete slab, it creates upward pressure that weakens the bond between the coating and the surface. This leads to issues like blistering, peeling, and even structural problems such as concrete spalling and rebar corrosion. As Charlie "The Grout Geek" Lerman from Alchatek explains:

"The presence of water can cause blistering and peeling, or even promote microbial growth, which accelerates the degradation process".

The good news? These problems can be avoided. The key lies in understanding the risks and taking proactive measures. Accurate moisture testing and meticulous surface preparation, and choosing a coating system designed to handle hydrostatic pressure are critical steps. Tackling moisture at its source not only prevents damage but also saves money in the long run. As Sherwin-Williams points out:

"Remediating coating failures is almost always more expensive than preventing them".

For property owners in North Idaho and Eastern Washington – including Spokane and Tri-Cities, WA – Croc Coatings provides a reliable solution to hydrostatic pressure issues. Their Penntek Evolution System offers 4x the strength of traditional epoxy, exceptional moisture resistance, and a lifetime warranty. With certified professional installation and a one-day application process, this system ensures concrete surfaces are protected against moisture-related failures.

Protect your property by choosing the right coating system and applying it with precision.

FAQs

How can I tell if my slab has hydrostatic pressure?

Hydrostatic pressure in a concrete slab often reveals itself through visible issues like peeling, bubbling, or blistering coatings. Another common sign is persistent moisture or dampness on the slab’s surface. These problems stem from water pressure building up beneath the slab and pushing upward.

Catching these signs early is crucial. Left unchecked, hydrostatic pressure can lead to coating failures and even structural damage, which can be costly to repair.

Can hydrostatic pressure be fixed without removing the coating?

When dealing with hydrostatic pressure, you can often address the issue without stripping away the coating. Solutions like enhancing drainage, using specialized sealers, or setting up drainage systems to minimize water accumulation are common approaches. However, the success of these methods largely hinges on the specific circumstances and the state of the current coating.

What coating is best for basements and slabs below grade?

The best coating for basements and below-grade slabs is one specifically created to handle moisture and hydrostatic pressure. These specialized waterproofing systems are built to offer reliable protection in such challenging conditions. To achieve lasting results, focus on thorough preparation and correct application.
