Grinding a concrete floor is the most important step to ensure your coating adheres effectively and lasts. Skipping this process can lead to peeling, bubbling, or weak bonds. Here’s what you need to know:

• Why Grind? It removes contaminants, evens out surfaces, and creates a textured profile for coatings to stick better.
• Tools You’ll Need: Grinders (handheld or walk-behind), diamond grinding pads (different grits for specific tasks), and a HEPA vacuum system for dust control.
• Safety First: Use a respirator, safety glasses, gloves, ear protection, and steel-toed boots.
• Steps to Follow:
  1. Inspect the floor for damage, stains, or old coatings.
  2. Choose the right grinder and diamond pads based on the floor’s hardness.
  3. Grind to achieve the correct Concrete Surface Profile (CSP), typically CSP 2 for residential projects.
  4. Clean thoroughly to remove all dust and debris, ensuring a strong bond.

Proper preparation ensures a durable and long-lasting coating. Follow these steps for professional results.

How to Prep for Floor Coatings | Grinding

sbb-itb-a0e5ae3

Tools and Materials You’ll Need for Grinding Concrete Floors

Before you start grinding, it’s crucial to have the right tools and materials ready. The quality of your equipment directly impacts both efficiency and the final result.

Grinders and Diamond Grinding Pads

For smaller areas or tight spaces, handheld grinders (4.5–7 inches) are ideal. For larger floors, a walk-behind grinder is the better choice. If you’re considering costs, professional-grade 5-inch grinder kits are priced around $380, while 7-inch kits with dust shrouds range between $190 and $220.

When it comes to diamond grinding pads, the grit you choose matters. Start with coarse grits (30–40) to remove coatings and even out high spots. Then switch to medium grits (80–120), typically stopping at 100 grit, to create the texture needed for a strong mechanical bond. Keep the concrete’s hardness in mind: hard concrete works best with soft bond pads (allowing diamonds to self-sharpen), while soft concrete requires hard bond pads to prevent excessive wear.

Don’t forget to pair your grinder with an effective dust management system for a clean and safe workspace.

Vacuum Systems for Dust Control

Dust control is not just about cleanliness – it’s essential for safety and achieving a smooth finish. Grinding concrete generates fine silica dust, which can lead to serious health issues like silicosis. To handle this, you’ll need a powerful vacuum system with a HEPA filter. These vacuums are designed to capture 99.97% of fine particles and are equipped with bypass motors to avoid overheating during extended use.

Avoid relying on standard shop vacs; they lack the power and filtration necessary for this type of job and can clog or burn out. Entry-level HEPA vacuums start at around $360, while professional models, such as the Husqvarna DE120, range between $3,195 and $3,995. Make sure to connect the vacuum directly to your grinder’s dust shroud to capture dust at its source, as recommended by OSHA.

Once your equipment and dust control systems are ready, focus on personal safety.

Safety Gear

Grinding concrete can expose you to hazards like dust, debris, and high noise levels. Protect yourself with the following safety gear:

• A high-quality respirator
• Safety glasses
• Heavy-duty gloves
• Ear protection
• Steel-toed boots

Travis McCutchen from Onfloor highlights the importance of proper protection: "The dust created when grinding concrete is highly alkaline, so use a respirator to protect yourself from breathing it in."

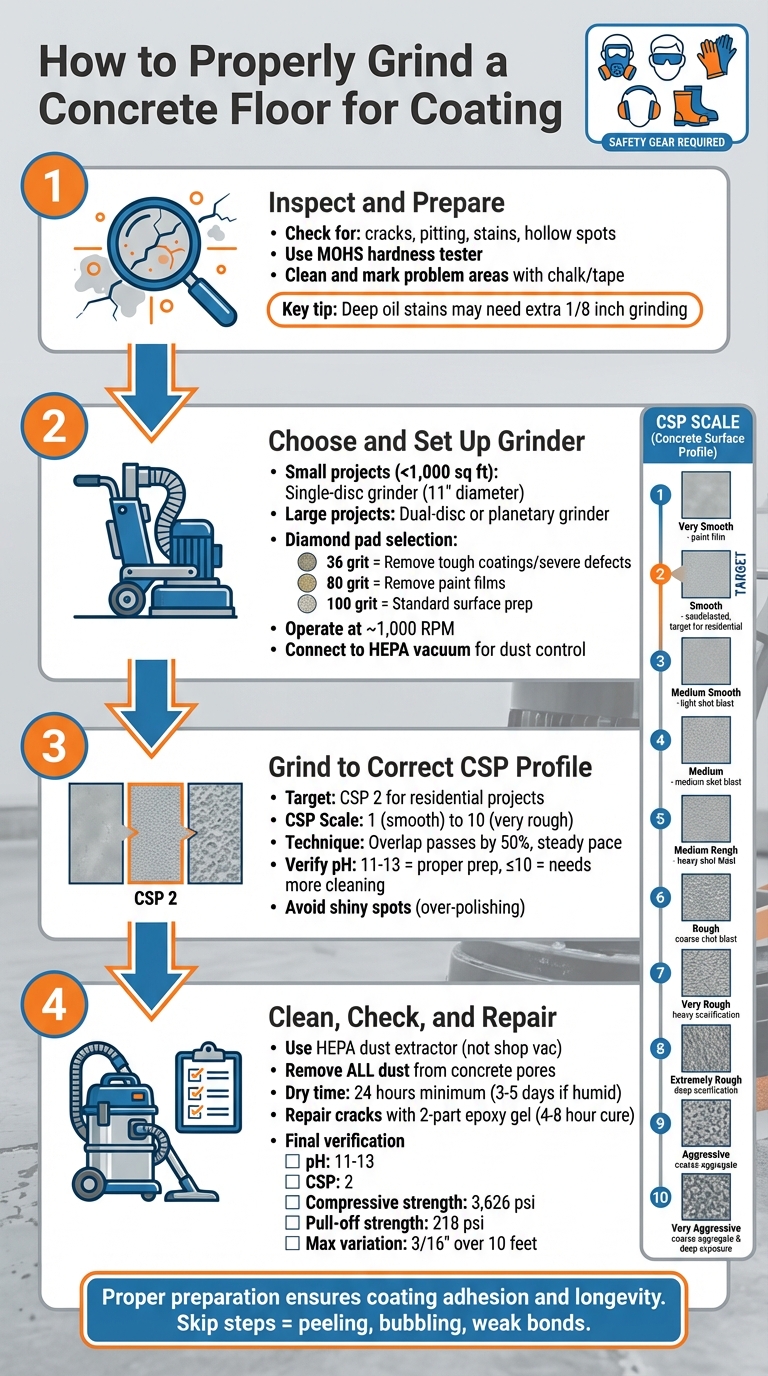

Step 1: Inspect and Prepare the Concrete Surface

Before you start grinding, take a close look at your concrete. A detailed pre-installation checklist can save you from headaches later, protect your tools, and help the coating adhere properly.

Check the Floor for Damage and Contaminants

Walk across the entire floor and look for cracks, pitting, stains, and hollow spots. These flaws won’t magically disappear during grinding – they’ll actually stand out more once the coating is applied. For deep oil stains, you might need to grind down an extra 1/8 inch or use specialized primers to seal the area. Also, keep an eye out for old coatings, adhesives, or leftover epoxy, as these can damage your grinding pads if not handled correctly.

Use a MOHS hardness tester to determine the floor’s density. This is crucial because the hardness of the concrete dictates the type of diamond tooling you’ll need. Hard concrete works best with soft bond pads that allow the diamonds to self-sharpen, while soft concrete requires hard bond pads to avoid excessive wear. Getting this step right ensures the surface will be ready for a strong bond with the coating.

Don’t forget to check the floor’s texture. Rough areas that feel like sandpaper will need extra attention during grinding. This inspection helps you plan your grinding approach for the next step.

Clean and Mark Problem Areas

Once you’ve identified problem spots, clear and clean the surface before marking them. Avoid using scrubbers, as the moisture they leave behind can interfere with same-day coating application. Instead, sweep and vacuum the floor to reveal its true condition.

After cleaning, use chalk or tape to mark high spots, damaged areas, and sections needing extra work. These markings serve as a visual guide during grinding, ensuring nothing is overlooked. For garage floors, think about where you’ll need termination cuts near doors to create clean edges for the coating. It’s also a good idea to test a small area first to confirm your settings produce the right surface profile.

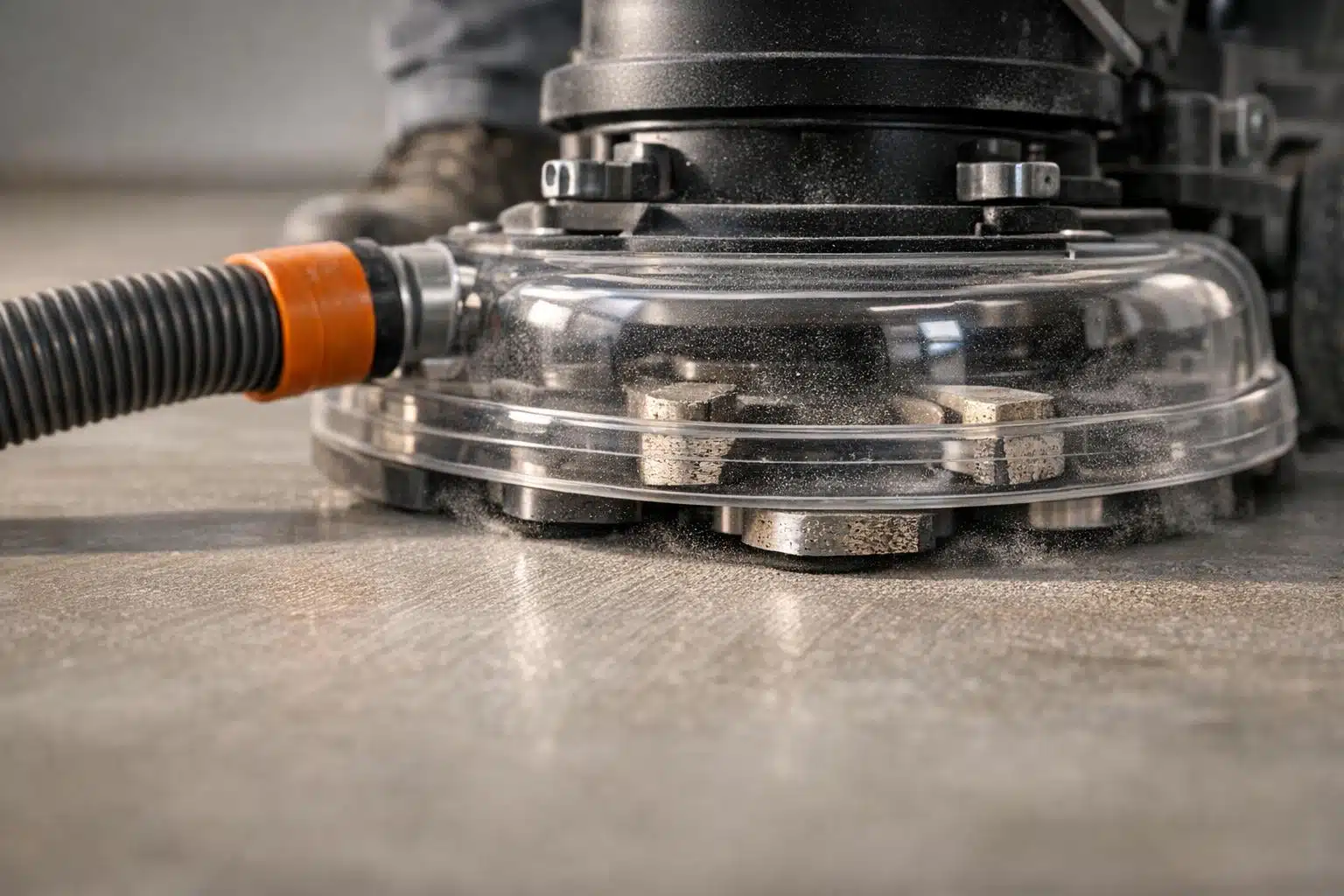

Step 2: Choose and Set Up Your Grinder

Now that you’ve checked out the floor, it’s time to pick the right grinder and get it ready to roll. The size of your project and the condition of the concrete will guide your choice.

Selecting the Right Grinder

For smaller residential projects under 1,000 square feet, a single-disc grinder is your go-to. These grinders usually have an 11-inch diameter pad and are light enough to handle easily in tight spots. If you’re working on a bigger commercial space, consider a dual-disc or planetary grinder. Dual-disc models cover twice the area of single-disc machines, while planetary grinders use multiple pads that spin and orbit at the same time, making them great for larger floors that need smoothing and prep work.

The type of task also matters. Planetary grinders are easier to control and better suited for general prep and polishing. On the other hand, rotary grinders are heavier and less maneuverable but are perfect for tough jobs like removing deep oil stains or leveling uneven concrete. One thing to note: standard grinders can only get within an inch of walls, so you’ll need an edge grinder to handle those perimeter spots.

Once you’ve picked the right grinder, it’s time to set it up for maximum efficiency.

Installing the Grinder and Pads

Proper setup builds on your floor inspection and ensures you meet coating prep standards.

• Use 36 grit pads for removing tough coatings or fixing severe defects.
• Switch to 80 grit for tackling paint films.
• Opt for 100 grit for standard surface prep.

Don’t forget the bond hardness rule from earlier: soft bond pads are best for hard concrete, while hard bond pads work better on softer concrete.

Attach the pads securely using your grinder’s quick-change system. To manage dust and avoid overheating, connect the grinder to a high-CFM vacuum or use wet grinding. Adjust the handle to a comfortable height to keep the machine level during operation – this helps prevent uneven grinding and reduces fatigue.

"Grinding concrete works best at higher speeds (around 1000 RPMs, or revolutions per minute)." – Travis McCutchen, Onfloor

Aim for about 1,000 RPM, but always follow the manufacturer’s recommendations. Start at a lower speed to see how the grinder interacts with your concrete. Let the weight of the machine do the work – don’t press down, as this ensures a consistent and uniform surface profile.

Step 3: Grind the Floor to the Correct CSP Profile

Now that your grinder is set up, it’s time to grind the concrete to achieve the ideal surface texture for coating adhesion. The goal here isn’t to smooth the floor but to create the right texture that allows the coating to bond effectively.

What is the CSP Scale?

Before grinding, it’s important to understand the Concrete Surface Profile (CSP). This scale, developed by the International Concrete Repair Institute (ICRI), measures the roughness of a concrete surface. The scale ranges from CSP 1 (almost flat and smooth) to CSP 10 (very rough with visible aggregate). Essentially, it’s a guide to help you determine how textured your concrete should be.

"Without proper surface preparation that achieves the correct CSP, even the best floor coatings can fail." – CustomCrete

For most residential applications, especially those involving thin-film decorative finishes, the recommended profile is CSP 2. Always check your coating manufacturer’s specifications for the exact requirement. If the surface is too smooth, the coating won’t stick properly. On the other hand, if it’s too rough, you may end up using more material than necessary as the coating fills deep grooves. To ensure accuracy, use ICRI CSP chips – physical models of each profile level – to confirm your surface matches the required texture.

Grinding Techniques for Consistent Results

To achieve a uniform CSP, work systematically. Begin in one corner, overlapping each pass by 50%. Keep your pace steady and consistent, allowing the grinder’s weight to do the work to avoid uneven grinding.

As you grind, keep an eye on the surface. Shiny spots are a sign of over-polishing – switch to a coarser pad immediately to restore the proper texture.

Don’t neglect edges and corners. While most grinders are effective in open areas, achieving a consistent profile near walls is just as important. If your grinder can’t reach these tight spots, use an edging attachment to ensure uniformity right up to the edge.

Once the entire surface has the correct texture, verify the concrete’s pH. A reading between 11 and 13 indicates proper preparation. If the pH is 10 or lower, contaminants may still be present, and additional cleaning will be necessary before applying the coating.

From here, you’re ready to move on to cleaning and ensuring the surface is fully prepared for the coating application.

Step 4: Clean, Check, and Repair the Surface

Getting rid of dust and debris is a must for ensuring your coating properly bonds to the concrete. Dust is one of the biggest culprits behind poor adhesion, acting as a barrier between the coating and the slab.

Remove All Dust and Debris

Skip the broom or a standard shop vacuum – they just won’t cut it. Instead, you’ll need a HEPA dust extractor to capture those tiny particles.

"If you dry grind, it is imperative that you remove ALL the dust from the pores of the slab." – Randy Wheelis, Product Trainer, Bartell Global

Grinding opens up the pores of the concrete, but leftover dust can block the primer from bonding effectively. To avoid this, use a vacuum equipped with a cyclone pre-separator and make several passes over the entire surface. Even with top-notch equipment, always wear a NIOSH-approved particulate respirator and eye protection during the process.

If you’ve used wet cleaning methods or an auto-scrubber, patience is key. Let the surface dry for at least 24 hours under ideal conditions – or up to 3 to 5 days if humidity is high – before applying any coating. Any trapped moisture can lead to coating failure.

Once the dust is gone, take a closer look at the floor to spot any damage that might have been revealed during grinding.

Check for Remaining Damage

With the surface clean, inspect it for cracks or holes that need fixing. Here’s a quick test: use a playing card to check cracks. If the card fits, it’s time for repairs.

Use a 4-inch diamond blade to slightly widen the cracks, ensuring the repair material can settle in fully. Mix a two-part epoxy gel until the color is uniform, then apply it with a stiff putty knife. Overfill the crack slightly to ensure a complete seal, and smooth it out to keep it level with the surrounding surface. Most epoxy gels will cure within 4 to 8 hours.

Before moving forward, check for moisture one last time. Tape a 3-mil plastic sheet to the floor and leave it for 24 hours. If you spot condensation or discoloration underneath, the slab still isn’t dry enough for coating.

Verify the Surface Meets Coating Standards

Now, confirm that the surface meets the standards required for Penntek Industrial Coatings. Start by re-testing the pH – it should read between 11 and 13. If it’s 10 or lower, additional cleaning is needed.

Next, double-check the CSP (Concrete Surface Profile) using ICRI chips. Most residential jobs need a CSP 2 finish. The concrete should also meet these specific benchmarks:

• 3,626 psi compressive strength
• 218 psi pull-off strength
• A maximum variation of 3/16 inch over 10 feet
• Substrate temperature at least 5°F above the dew point

Conclusion

Grinding a concrete floor is a crucial step – it sets the stage for a coating that stands the test of time. By creating the right surface texture, grinding ensures the coating adheres properly while eliminating weak layers like laitance. This attention to detail during preparation is what supports the durability of your coating.

"Proper preparation is the foundation of a successful epoxy coating." However, choosing between polyurea vs. epoxy also impacts the long-term performance of your floor. – Tomahawk Power

To achieve the best results, it’s essential to follow every step: inspect the surface, choose the right grinder and diamond pads, reach the correct CSP profile, and thoroughly clean before applying the coating.

For projects in North Idaho and Eastern Washington, Croc Coatings adheres to the strict standards of the Penntek Evolution system. Professional grinding not only creates a consistent scratch pattern but also removes deep-seated contaminants that DIY methods often leave behind. This level of precision can mean the difference between a coating that lasts a few years and one that comes with a lifetime warranty.

When the surface is properly prepared and meets the required standards, you’re ensuring a floor that’s not just visually stunning but also built to withstand years of heavy use.

FAQs

Should I grind or acid-etch before coating?

Grinding is often the go-to method for preparing surfaces before applying a coating. It effectively strips away old coatings, smooths out uneven spots, and creates an ideal surface for the new coating to adhere to. While acid-etching is another option – using a chemical reaction to roughen the surface – grinding tends to deliver better results, particularly on uneven or previously coated surfaces. For long-lasting outcomes, grinding remains the preferred choice.

How do I know my floor is at the right CSP?

To determine if your concrete floor has the appropriate CSP (Concrete Surface Profile), examine the texture closely. The surface should have a consistent profile, be smooth enough to allow proper coating adhesion, and remain free of debris or uneven areas. While a CSP gauge can provide an exact measurement, ensuring the surface is clean and evenly prepared is typically adequate for most coatings.

Can I coat the same day after grinding?

It’s usually best to avoid applying a coating to a concrete floor immediately after grinding. The surface needs to be fully dry for the coating to adhere properly and last over time. Depending on the environment and conditions, this drying period can range from several hours to an entire day. Allowing at least 24 hours after grinding reduces the risk of problems like peeling or bubbling, ensuring the coating stays intact and performs well.
