Want to protect your concrete floors from moisture damage? Vapor barriers are essential for keeping ground moisture out, preventing issues like cracking, mold growth, and adhesive failures.

Here’s what you need to know:

• What are vapor barriers? Thin plastic membranes or coatings that stop moisture from seeping into concrete slabs.
• Why are they important? They protect against structural damage, mold, and flooring failures while improving durability and indoor air quality.
• What to consider? Choose the right material (e.g., polyethylene, epoxy), thickness (10+ mils for residential, 15+ mils for commercial), and ensure proper installation with sealed overlaps and a stable base.
• Common mistakes: Using barriers that are too thin or ignoring local climate conditions can lead to costly repairs.

Quick Tip: Always follow ASTM E-1745 standards and use Class A barriers for the best protection.

With proper vapor barrier installation, you can extend the life of your floors and avoid expensive moisture-related issues.

STEGO® WRAP | How to Install an Under-Slab Vapor Barrier

What to Consider When Choosing a Vapor Barrier

When selecting a vapor barrier, it’s essential to weigh factors like material type, thickness, and compatibility with your floor coating system. These choices will directly impact the barrier’s long-term performance and effectiveness.

Material Types and Properties

Vapor barriers generally fall into two categories: membranes and coatings. Each has unique advantages depending on the application. Understanding their properties is key to choosing the right fit for your project.

• Polyethylene (PE): This plastic material is a popular choice for concrete floors due to its affordability and ease of installation. Available in various thicknesses, PE is excellent for minimizing low-level humidity migration and stopping moisture from seeping through concrete subfloors.
• Aluminum Foil Barriers: Known for their superior vapor resistance and durability, these barriers work well in high-humidity environments, such as buildings with swimming pools. They are often paired with other underlayment materials to create a robust moisture control system.
• Rubberized Asphalt Membranes: These flexible options are ideal for uneven subfloors and can accommodate a variety of flooring types.
• Epoxy Moisture Barriers: Applied as a coating directly onto concrete, epoxy barriers form a seamless, moisture-resistant layer. They not only protect against moisture but also prepare the surface for additional floor coverings.

The ASTM E-1745 standard categorizes vapor barrier materials into Class A, B, or C, based on factors like puncture resistance, tensile strength, and water vapor permeance. Class A offers the highest level of protection, while Class C provides basic coverage.

ASTM E1745-11 Classification	Water Vapor Permeance	Tensile Strength	Puncture Resistance
Class A Requirement	0.10 perms	45.0 lb/in	2,200 grams
Class B Requirement	0.10 perms	30.0 lb/in	1,700 grams
Class C Requirement	0.10 perms	13.6 lb/in	475 grams

As Joseph Lstiburek from Building Science Corporation points out:

"Vapor barriers were originally intended to prevent assemblies from getting wet. However, they often prevent assemblies from drying".

This highlights the importance of selecting a barrier that aligns with both your climate and specific application needs.

Thickness Requirements

The thickness of a vapor barrier, measured in mils (1 mil = 0.001 inches), plays a big role in its durability and ability to resist punctures. Both the American Concrete Institute (ACI) and the 2021 International Residential Code (IRC) recommend a minimum thickness of 10 mils for barriers under residential concrete slabs.

Here’s a breakdown of common thickness options:

• 6-mil barriers: A budget-friendly option for basic moisture control, but they lack durability.
• 10-mil barriers: Striking a balance between cost and performance, these provide better puncture resistance and longer-lasting protection.
• 15-mil barriers: Designed for more demanding environments, offering increased durability.
• 20-mil barriers: Ideal for extreme moisture challenges, such as industrial settings or crawl spaces with severe conditions.

Thicker barriers are especially important for uneven or rocky subfloors, as well as for sites with gas or VOC contamination, where specialized EVOH resin vapor barriers may be required. Once the appropriate thickness is determined, ensure the barrier is compatible with your floor coating system.

Working with Floor Coatings

A properly installed vapor barrier is crucial for the success of floor coatings. Moisture-related failures, like blistering caused by high pH levels breaking down adhesives, can often be avoided with the right barrier. For instance, Croc Coatings’ Penntek Evolution system requires a low-permeance barrier (less than 0.3 perm) to ensure strong adhesion and durability.

Vapor barriers can also speed up drying times significantly. For example, a 4-inch concrete slab with a water-cement ratio of 0.50 dries in 82 days with a barrier, compared to 144 days without one. To maximize performance, the barrier must remain intact during construction to prevent tears that could compromise its effectiveness.

For best results:

• Use concrete with a water-cement ratio no higher than 0.45.
• Cure the slab with sheet material for seven days instead of relying on membrane curing compounds.
• Install the vapor barrier beneath the slab over granular material that acts as a capillary break.

How to Install Vapor Barriers Correctly

Getting the installation right is just as important as choosing the correct vapor barrier. A well-prepared base and properly sealed joints and overlaps are key to ensuring the barrier performs as it should. Following these steps can help maintain the integrity of your vapor barrier and support the overall quality of the project.

Preparing the Base

A solid foundation is essential for a successful vapor barrier installation. Howard Kanare emphasized this in his 2007 research:

"This author firmly believes that a floor slab is part of the building envelope and that every slab on ground should have a vapor retarder meeting ASTM E1745 installed directly beneath the concrete."

Steps for Site Preparation

Start by clearing the site of vegetation, roots, and debris. Then, excavate the area to make room for a 4–6 inch layer of pea gravel plus the concrete slab. Once the excavation is complete, compact the soil at the bottom to eliminate air pockets and create a stable base. This step is crucial to prevent future settling, which could damage the vapor barrier. If the soil is soft, consider adding geotextile fabric to prevent erosion.

Installing the Gravel Base

Frame the excavation with pressure-treated wood boards to create straight, level edges. Spread the pea gravel evenly, making it slightly thicker in the center to assist with drainage. Use a plate compactor or hand tamper to ensure the gravel is compacted uniformly.

In most cases, high-performance vapor barriers can be placed directly on top of compacted aggregate, sand, or tamped earth without a cushion layer. If your project includes rigid foam insulation, install it over the compacted gravel before placing the vapor barrier.

Once the base is stable and compacted, the next focus is on properly sealing the joints and overlaps to maintain the barrier’s integrity.

Sealing Joints and Overlaps

The barrier’s effectiveness largely depends on how well the seams and overlaps are sealed. Even tiny gaps can let moisture through, undermining the entire system.

Overlap Guidelines

Ensure all seams overlap by at least 6 inches, or 12 inches if the system is designed for radon protection . This added overlap provides extra defense against gas infiltration.

Sealing Process

Before sealing, clean the surface of the vapor barrier to remove dust and debris. A clean, dry surface is critical for the tape to adhere properly.

Use manufacturer-recommended seaming tape to cover all overlaps. Press the tape down firmly, using a roller or even your foot to ensure strong adhesion. To enhance protection, apply a continuous bead of caulk along every seam. Be sure to caulk all edges where the vapor barrier meets walls or floors.

Choosing the Right Sealant

The sealant plays a big role in ensuring airtight, flexible, and durable seals. Polyurethane caulk is a great choice for its flexibility and durability, especially in fluctuating temperatures. Acoustical sealant is another option, providing airtight seals and remaining flexible after curing, while butyl rubber caulk offers excellent water resistance and strong adhesion to most surfaces.

Tools and Materials You’ll Need

To get the job done, have the following on hand: a utility knife, tape measure, work gloves, protective eyewear, rags, and a bulk caulking gun. Use vapor barrier-specific seaming tape and accessories like Stego Crete Claw Tape, StegoTack Tape, or Stego Mastic for sealing perimeters and penetrations.

Final Installation Tips

Whenever possible, extend the vapor barrier up the slab edges so it ends near the top of the concrete slab. Be vigilant about addressing any tears or punctures immediately, as even minor damage can significantly reduce the barrier’s performance.

sbb-itb-a0e5ae3

Common Mistakes to Avoid

Even with the best intentions, vapor barrier projects can go off track if certain mistakes aren’t addressed. Spotting these issues beforehand can save you from expensive repairs and compromised performance. Two major missteps are choosing a barrier that’s too thin and overlooking the influence of local climate conditions.

Choosing Barriers That Are Too Thin

One frequent mistake is opting for vapor barriers thinner than 10 mils. These thinner options are prone to failure, especially under heavy use or on uneven surfaces, allowing moisture to seep through and causing adhesive breakdown.

The American Concrete Institute (ACI) provides clear guidance on this. According to Committee 302 of the ACI, "the thickness of the vapor retarder be no less than 10 mils (0.25mm)". Using a barrier below this standard increases the likelihood of punctures or tears during installation, leading to moisture infiltration. Once moisture gets into the concrete slab, it can elevate surface pH levels, which weakens adhesives and risks the failure of floor coverings. Considering the high cost of flooring, sticking to the ACI’s 10-mil minimum is non-negotiable.

For areas with heavy traffic or significant moisture challenges, thicker barriers are recommended. For instance, Class A vapor barriers provide superior tensile strength and resistance to punctures, while Class C barriers offer much less protection.

The next critical factor to consider is how local climate conditions can impact the effectiveness of vapor barriers.

Ignoring Local Climate Conditions

Material choice is important, but environmental factors can have an equally significant impact on vapor barrier performance. Unfortunately, climate considerations are often overlooked. The International Residential Code (IRC) divides North America into eight climate zones to help builders choose the right vapor barrier based on temperature, humidity, and seasonal shifts.

Local codes and moisture levels should always inform your choice of barrier. For example, in areas like North Idaho and Eastern Washington – where freeze-thaw cycles and large temperature swings are common – a low-permeance Class-I vapor barrier is often required.

Failing to account for climate-specific needs can result in moisture issues like mold growth and structural damage. In the Pacific Northwest, frequent temperature changes can cause expansion and contraction, stressing barriers that weren’t designed for such conditions. Experts recommend using barriers with tested permeance to safeguard flooring and maintain indoor air quality.

To avoid climate-related errors, consult local building codes to determine the right barrier type and installation method for your region. Local building inspection offices can provide advice tailored to your area’s conditions. Additionally, rather than relying solely on flooring type, use moisture readings to guide your choice. Professional installers often use moisture meters to assess subfloor conditions and recommend barriers that offer reliable protection. Be cautious about using double vapor barriers, as they can trap moisture and lead to damage.

Final Recommendations

Protecting your concrete floor’s durability and ensuring your investment lasts begins with choosing and installing a high-quality vapor barrier. Here’s a recap of the critical factors to keep in mind:

Key Points to Remember

Material quality matters. Opt for ASTM E 1745 Class A vapor barriers made from 100% virgin resin. These offer better moisture protection compared to barriers made from recycled materials, even if the recycled ones are thicker. Co-extrusion technology further enhances performance, making it the go-to choice for reliable results.

"High pH and alkalinity at the flooring adhesive to slab interface can compromise the adhesion of the costly finished flooring system." – Dario Lamberti, General Manager of ISI’s Engineered Films Division

Thickness is non-negotiable. For residential projects, use barriers with a minimum thickness of 10 mils, and for commercial applications, go with at least 15 mils. This ensures the durability needed for different environments.

Proper installation is key. Overlap seams by at least 6 inches and seal all joints with approved tape. Before installing, make sure the sub-base is leveled and compacted to reduce puncture risks. Pay special attention to sealing around penetrations, as even small gaps can allow moisture to seep through.

Consider the climate. In regions like North Idaho and Eastern Washington, opt for low-permeance Class A barriers that can withstand freeze-thaw cycles and temperature fluctuations.

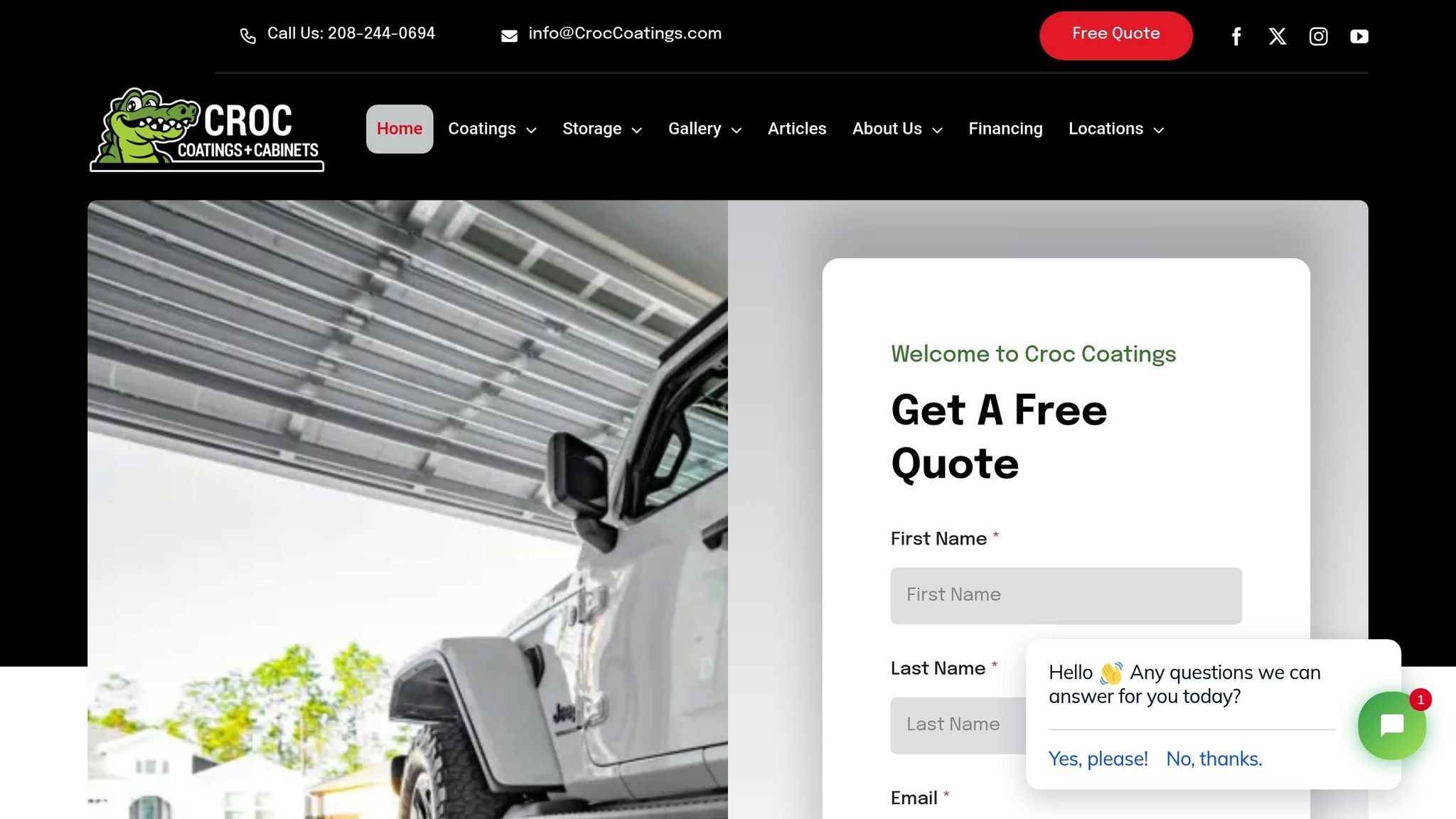

How Croc Coatings Can Help

When it comes to ensuring your flooring system performs at its best, professional expertise is invaluable. Croc Coatings specializes in durable concrete coating solutions that work hand-in-hand with properly installed vapor barrier systems, particularly in the challenging climates of North Idaho and Eastern Washington.

Their Penntek Evolution industrial coating system offers a level of strength that’s 4x greater than traditional epoxy. This makes it ideal for protecting garage floors, patios, pool decks, basements, and industrial floors. Paired with a quality vapor barrier, this system creates a comprehensive moisture protection solution that safeguards both the concrete base and the finished surface.

Croc Coatings’ one-day installation process ensures that vapor barriers and coating systems are seamlessly integrated, minimizing disruption while maximizing performance. Their team understands the critical link between moisture control and coating adhesion, helping to prevent costly adhesive failures caused by moisture issues.

With a lifetime warranty on their coating systems, Croc Coatings stands by their commitment to long-term moisture management and surface protection. Their approach goes beyond simply applying coatings – they ensure that vapor barriers, concrete preparation, and coatings work together as a cohesive system to deliver floors that last for decades.

For projects that demand both vapor barrier installation and concrete coatings, partnering with experienced professionals like Croc Coatings ensures every detail is handled correctly, giving you a flooring system that’s built to endure.

FAQs

What are the differences between Class A, B, and C vapor barriers, and how do I choose the best one for my concrete floor?

Class A, B, and C vapor barriers are categorized by their strength and durability, as outlined in ASTM E1745 standards. Despite their differences, all three are considered Class I barriers, meaning they are highly effective at blocking water vapor. Among them, Class A stands out as the strongest, offering a minimum tensile strength of 45 lbs per inch and puncture resistance of 2,200 grams. Class B comes next, with a tensile strength of 30 lbs per inch and puncture resistance of 1,700 grams. Class C, while still effective, is the least durable, with a tensile strength of 13.6 lbs per inch and puncture resistance of 475 grams.

When it comes to concrete floors, a Class A vapor barrier with a minimum thickness of 10 mils is the go-to choice. This thickness provides excellent moisture protection and reduces the risk of punctures, ensuring long-term performance – especially in areas with high moisture exposure. Choosing the right vapor barrier is essential to protecting your concrete slab and preventing moisture-related problems down the line.

How does the climate in your area impact the selection and performance of vapor barriers for concrete floors?

The climate in your area significantly influences the choice of vapor barrier for concrete floors. In humid regions, it’s essential to use a barrier tough enough to stop moisture from penetrating the concrete. Excess moisture can lead to problems like condensation and damage to your flooring materials. In such cases, barriers designed to allow controlled vapor diffusion can be especially helpful. They prevent pressure buildup while still safeguarding the floor.

In colder regions, the priority shifts to keeping ground moisture from entering the concrete. This typically calls for thicker vapor barriers to withstand the higher groundwater pressure. Taking your local climate into account will help you pick a vapor barrier that not only lasts but also protects your flooring over time.

What are the key mistakes to avoid when installing vapor barriers for concrete floors, and how can I ensure proper installation?

When installing vapor barriers for concrete floors, there are a few common missteps to watch out for. These include placing the barrier on the wrong side of the insulation, not sealing the seams properly, and using a material that’s not up to the task. Misplacing the barrier can trap moisture, while unsealed seams may let moisture sneak through, potentially damaging your flooring and even voiding warranties.

To get it right, start by making sure the concrete surface is completely clean and dry before you begin. Overlap the seams by at least 6 inches and seal them tightly to block any moisture from getting through. Choose a strong, reliable vapor barrier that meets local building codes, and don’t skip testing the concrete slab for moisture levels beforehand. Following these steps can go a long way in protecting your floors and keeping them in good shape for years to come.
