Testing concrete moisture before applying a coating is essential to avoid costly issues like blistering, peeling, or mold. Even if concrete appears dry, hidden moisture can cause coating failures over time. To ensure success, you need to measure moisture levels using reliable methods that meet industry standards. Here’s a quick summary of the most common testing methods:

• In Situ Relative Humidity (RH) Testing: Measures internal moisture at 40% slab depth. Ideal for precise results but requires drilling and 72-hour stabilization.
• Calcium Chloride Test: Assesses surface moisture emission rates. Simple but limited to surface-level data.
• Electronic Moisture Meters: Quick, non-invasive surface readings. Best for initial checks but less accurate due to material interference.
• Plastic Sheet Method: Low-cost way to detect surface moisture presence. Provides qualitative results only.

Each method has its strengths and limitations. For critical projects, combining tests gives a clearer picture of moisture levels and helps prevent coating failures. Proper testing upfront saves time, money, and frustration in the long run.

How To Moisture Test Concrete!

4 Methods to Test Concrete Moisture

Testing concrete for moisture is a crucial step in ensuring the durability and success of your project. There are four main methods for assessing moisture in concrete, each with its own strengths and limitations. Choosing the right method depends on your project’s needs, timeline, and budget. Here’s a closer look at each approach.

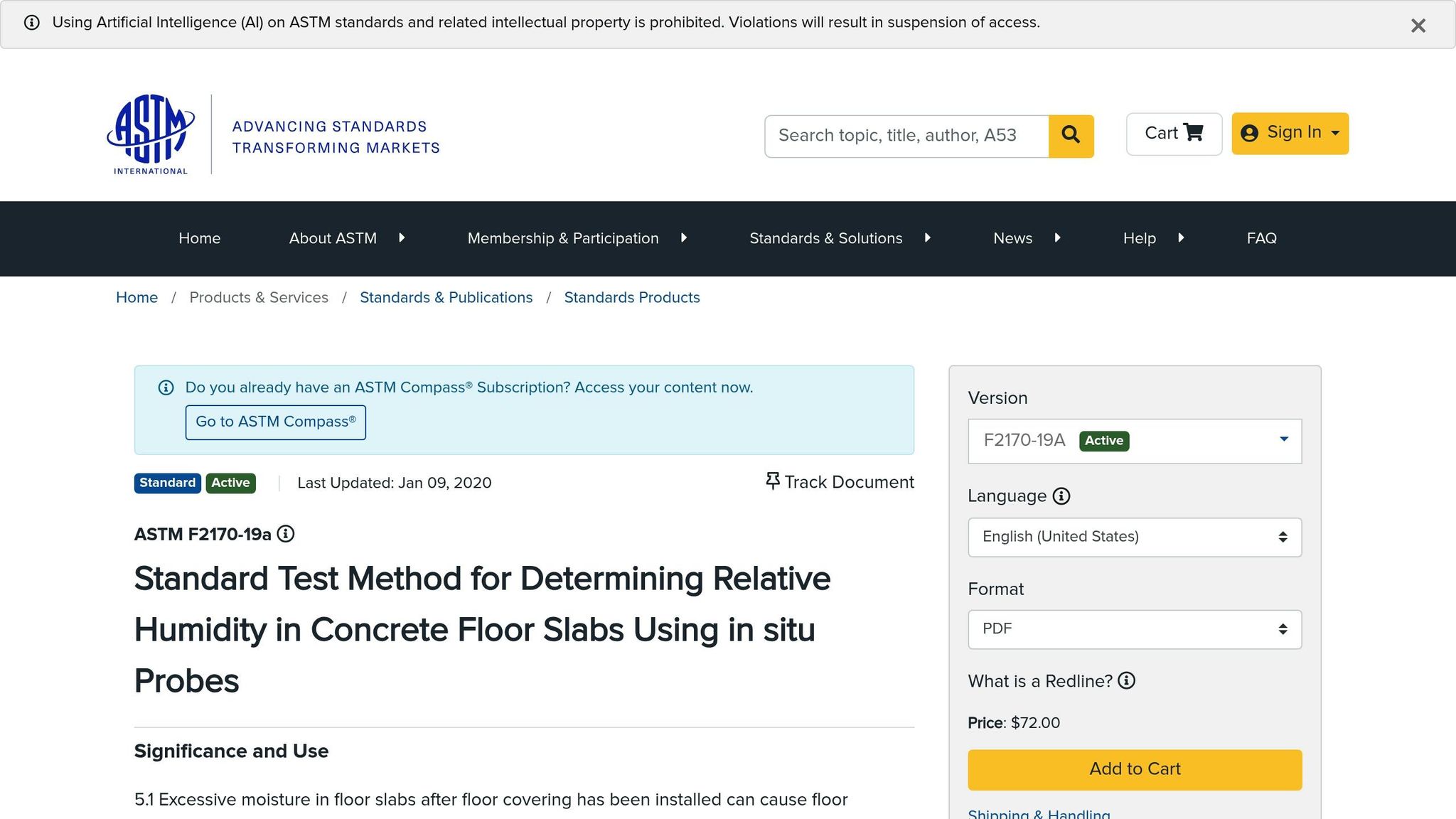

In Situ Relative Humidity (RH) Testing (ASTM F2170)

The in situ relative humidity test is widely regarded as the go-to method for measuring concrete moisture. It provides a detailed understanding of the moisture conditions inside the slab, particularly at 40% of its depth. This is critical because it assesses moisture where it can most affect coating adhesion. The process involves drilling into the cured concrete, allowing the holes to stabilize for at least 72 hours, and then inserting electronic probes to measure humidity. For most coatings, the internal RH should not exceed 75% to ensure proper adhesion.

Calcium Chloride Test (ASTM F1869)

This test measures the rate at which moisture vapor escapes from the surface of the concrete. It involves placing an anhydrous calcium chloride packet under a sealed dome for 60–72 hours. Afterward, the test calculates the moisture emission rate in pounds per 1,000 square feet over 24 hours. Most primers can handle up to 3 lbs of moisture vapor per 1,000 square feet per day, though some specialty coatings can tolerate up to 20 lbs. While this method provides numerical data, it’s often recommended to pair it with other tests for a more comprehensive assessment.

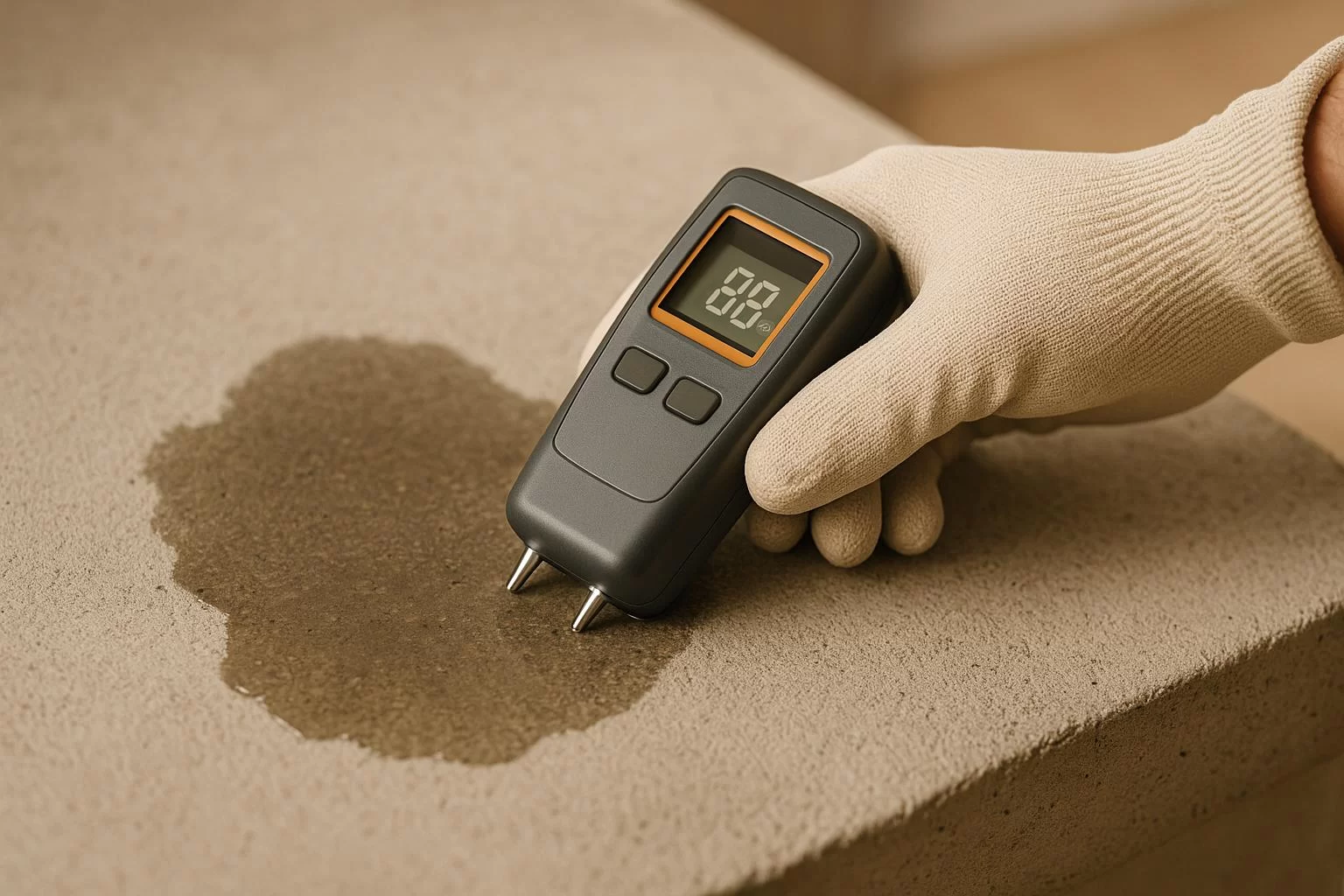

Electronic Moisture Meters

Electronic moisture meters, like the Tramex CME/CMExpert, are handy tools for quick, non-invasive moisture readings. These devices measure electrical impedance to estimate moisture content near the surface, typically within the top inch of the slab. They’re great for mapping large areas and identifying spots that may need further investigation. However, factors like concrete composition and the presence of rebar can skew results. For this reason, electronic meters are best used as supplementary tools rather than standalone solutions.

Plastic Sheet Method (ASTM D4263)

The plastic sheet method is a simple, low-cost way to check for moisture. An 18" × 18" plastic sheet is taped securely to the concrete surface and left for at least 24 hours. If the concrete darkens under the sheet, it indicates moisture migration. While easy to perform, this method only provides a surface-level, qualitative result. It doesn’t quantify moisture levels, which can be a drawback when assessing readiness for coatings.

Method	Depth Measured	Results Type	Best Use Case	Key Limitation
In Situ RH (ASTM F2170)	Internal (40% depth)	Quantitative	Critical installations	Requires drilling and 72-hour stabilization
Calcium Chloride (ASTM F1869)	Surface (top 0.5")	Quantitative	Surface-level moisture assessment	Limited to surface; some accuracy concerns
Electronic Moisture Meter	Surface (top 1")	Comparative	Quick, preliminary mapping	Affected by slab composition and rebar
Plastic Sheet (ASTM D4263)	Surface	Qualitative	Basic moisture presence check	Does not provide quantitative data

Selecting the right testing method is essential for achieving the best results. For high-stakes applications like garage floors or industrial spaces, the in situ RH test is often the most reliable option. In areas such as North Idaho and Eastern Washington, where seasonal moisture fluctuations can significantly impact concrete, ensuring proper moisture levels is even more critical. At Croc Coatings (https://croccoatings.com), we prioritize accurate moisture testing to ensure the long-term performance of our concrete coatings.

How to Perform In Situ Relative Humidity (RH) Testing

In situ RH testing is a reliable way to measure internal concrete moisture. To ensure accurate results, proper preparation and equipment setup are key.

Preparation and Equipment Setup

Start by gathering the right tools: a calibrated electronic RH sensor, a drill with a concrete bit, a vacuum or brush, sealing sleeves, and a data logger. Double-check that your RH sensor is calibrated before beginning the process.

Before testing, stabilize both the slab and the surrounding environment. Maintain conditions close to 75°F (±10°F) and 50% (±10%) RH for at least 48 hours. If achieving normal service conditions isn’t possible, follow the temperature and humidity ranges outlined in ASTM F2170.

Make sure the testing area is clean and free of dust or debris. The goal is to mimic the conditions the concrete will face once a coating is applied. This is especially critical in areas like North Idaho and Eastern Washington, where fluctuating seasonal temperatures can impact results.

Drilling and Sensor Placement

Precision is essential when drilling for RH testing. For slabs drying from one side, drill to 40% of the slab’s thickness; for slabs drying from both sides, drill to 20%, as per ASTM F2170 guidelines.

After drilling, thoroughly clean each hole using a vacuum or brush to remove all dust and debris. Insert the RH sensor or probe into the hole and seal it with a sleeve to block ambient air from interfering with the readings. To get a complete picture of the slab’s moisture levels, conduct tests at multiple locations – typically one test per 1,000 square feet. Clearly mark and map each test site for easy reference.

Taking and Reading Results

Allow the sensors to equilibrate for 24–72 hours, especially for critical projects. This equilibration period ensures the readings accurately reflect the slab’s internal moisture rather than surface or ambient conditions.

Once the sensors have stabilized, use the data logger or meter to take readings at each test location. Record the RH percentage for each spot. If any readings exceed 75% RH, it’s a sign that the slab has too much moisture, which may require moisture-mitigating primers or a delay in applying the coating.

Keep detailed records of all results, including the test location, hole depth, date, and environmental conditions. A simple map showing where each reading was taken can be extremely helpful for future reference or in case of warranty claims.

Accurate RH testing is critical for avoiding coating failures and expensive repairs. Careful documentation of your findings will help guide decisions on moisture mitigation and ensure a successful coating application.

sbb-itb-a0e5ae3

How to Perform Calcium Chloride Testing

Calcium chloride testing is a widely used method to measure concrete moisture vapor, following ASTM F1869 standards.

Preparing the Test Area

Proper surface preparation is key to obtaining accurate results. The concrete surface must be completely clean – free of dust, debris, sealers, adhesives, or any coatings that could obstruct moisture vapor transmission. Start by thoroughly cleaning the area with a vacuum or brush to remove loose particles. Ensure that no prior treatments remain, as these can interfere with the test’s accuracy.

Before testing, the environment must be conditioned. Maintain the slab and ambient air at 75°F (±10°F) and 50% relative humidity (±10%) for at least 48 hours. Make sure the HVAC system is running continuously during this period. Avoid conducting the test immediately after cleaning the slab with water or during extreme weather conditions, as these factors can distort the results.

Placing and Sealing the Test Dome

Once the surface is prepped, you can set up the calcium chloride test. The test kit typically includes a pre-weighed dish of anhydrous calcium chloride and a plastic dome. Begin by opening the sealed dish and recording its initial weight. Place the dish on the prepared concrete surface, then cover it with the plastic dome. Achieving an airtight seal is critical – any leaks can allow ambient moisture to skew the measurements. Use the adhesive or tape provided with the kit to securely seal the dome edges to the concrete.

Pay attention to detail here: uneven surfaces, insufficient adhesive, or disturbing the setup can compromise the test. Record the exact start time and date, then leave the assembly undisturbed for 60–72 hours. During this time, the calcium chloride will absorb moisture, with its weight increasing based on the emission rate.

Calculating and Evaluating Results

After the test period ends, it’s time to analyze the data. Remove the dome and immediately reweigh the calcium chloride dish to avoid further moisture absorption from the air. The weight gain represents the amount of moisture vapor emitted from the concrete during the test.

To calculate the moisture vapor emission rate (MVER), use the formula provided in your test kit. This formula converts the weight gain into pounds of moisture per 1,000 square feet over a 24-hour period. Many kits include charts or calculators to simplify this step.

Industry standards typically require MVER readings below 3–5 lbs/1,000 ft²/24 hrs for standard coatings. However, some moisture-tolerant primers can handle levels as high as 16 lbs/1,000 ft²/24 hrs. If your results exceed these limits, you might need to apply moisture-mitigating primers. In such cases, consulting a coatings expert – like Croc Coatings – can help you address high moisture levels effectively.

For thorough testing, perform multiple tests: at least three tests for the first 1,000 square feet and one additional test for every extra 1,000 square feet. Make sure to document all test conditions, including locations, environmental factors, and calculated MVER values.

It’s important to note that calcium chloride testing measures only surface moisture emission. This method may not fully capture deeper slab conditions or seasonal moisture changes. For critical projects or borderline results, consider supplementing with in situ relative humidity testing. Combining these methods provides a more complete picture of moisture levels, ensuring the best preparation for coating applications.

How to Choose the Right Testing Method for Your Project

Picking the best moisture testing method for your project involves weighing several factors that directly impact the long-term performance of your coating. Things like the type of coating, environmental conditions, timeline, and budget all play a role in this decision.

Coating Type
For high-performance systems, such as Croc Coatings’ Penntek Evolution, accurate moisture testing is a must. In these cases, in situ relative humidity (RH) testing (ASTM F2170) is the go-to method. This test measures moisture deep within the concrete slab – about 40% of the slab’s depth – providing a detailed moisture profile that’s crucial for premium coatings. On the other hand, for standard residential coatings that can handle moderate moisture levels, surface-based methods like the calcium chloride test (ASTM F1869) often suffice. These methods work well for thinner slabs or when surface moisture is the primary concern. For high-end systems, however, skipping thorough RH testing could lead to costly failures down the line.

Environmental Factors
In areas like North Idaho and Eastern Washington, where seasonal changes are extreme, environmental conditions can significantly influence moisture levels in concrete. For instance, spring snowmelt and fall rains can drive moisture deep into the slab. Even if a garage floor seems dry during summer, hidden moisture could later jeopardize your coating. Subsurface testing becomes especially critical in these scenarios to ensure long-term durability.

Project Timeline
Your timeline may dictate the testing method you choose. In situ RH testing typically takes about 72 hours for accurate results, while calcium chloride tests require 60–72 hours. If time is tight, electronic moisture meters can provide instant readings. While these are great for quick screenings to identify problem areas, they should be followed by standardized tests in those zones to ensure accuracy. Many professionals use this combination to save time without compromising results.

Budget Considerations
Budget constraints can also influence your approach. Relying solely on electronic moisture meters may lead to unexpected coating failures, while the plastic sheet method (ASTM D4263) is inexpensive but often fails to meet manufacturer requirements. A balanced strategy works best: start with a quick electronic screening, then use targeted in situ RH or calcium chloride tests for precise, quantitative data. This approach balances cost and reliability.

Manufacturer Requirements and Slab Characteristics
Always check your coating manufacturer’s guidelines, as they often specify acceptable moisture levels – typically 75% RH for in situ RH tests or 3–5 lbs/1,000 ft²/24 hrs for calcium chloride tests. The characteristics of the concrete slab also matter. Newer slabs with vapor barriers often require RH testing because surface methods might miss trapped moisture. For older slabs without vapor barriers, either method may work, but understanding these details helps you choose the right strategy to protect your investment.

Critical Applications and Seasonal Timing
For projects with high performance demands – like industrial floors, commercial spaces, or high-value residential installations – it’s wise to use multiple testing methods. Combining in situ RH testing to assess subsurface conditions with calcium chloride testing for surface vapor emission gives you a complete picture of the slab’s moisture profile. Seasonal timing also plays a role; testing during wet periods provides the most accurate results, while dry-season testing may underestimate moisture levels. Professional installers, such as those at Croc Coatings, factor in these seasonal variations to ensure your coatings hold up throughout the year.

Conclusion: Preventing Coating Failures Through Proper Testing

Concrete moisture testing is a crucial step for any successful coating project. Studies show that moisture-related issues are responsible for up to 80% of premature coating failures, which means skipping this process could put your investment at serious risk.

Different testing methods serve specific purposes, and understanding them helps you choose the right approach for your project. In situ relative humidity testing (ASTM F2170) offers the most accurate insight into internal slab conditions, making it an excellent choice for high-performance applications. Calcium chloride testing (ASTM F1869) measures surface vapor emissions effectively, while electronic moisture meters provide a quick screening option. Each method plays a key role in evaluating concrete moisture levels.

By learning about these methods, you can make better decisions when preparing your concrete. Keep in mind, the cost and effort of proper testing are far outweighed by the potential consequences of skipping it. Following manufacturer recommendations – such as maintaining moisture levels below 75% RH or 3–5 lbs/1,000 ft²/24 hrs – and adhering to ASTM standards ensures your concrete surfaces deliver long-lasting performance.

At Croc Coatings, we prioritize these standards in every project. As a Penntek™ Certified Partner and Installer, we thoroughly assess substrates to deliver our Penntek Evolution industrial coating system. This system, which is four times stronger than epoxy, is paired with meticulous moisture testing to ensure optimal adhesion and performance. Plus, all professionally installed coatings come with a lifetime warranty, serving customers across North Idaho and Eastern Washington.

Investing in proper moisture testing pays off with decades of durable, visually appealing flooring that performs as expected. By following these best practices, you can confidently safeguard your concrete coating project’s success.

FAQs

Why should you use multiple methods to test concrete moisture for critical coating projects?

Testing concrete moisture using a variety of methods is essential to the success of any critical coating project. Tools like calcium chloride tests, relative humidity probes, and surface moisture meters each offer distinct insights into the moisture levels within a concrete slab. By combining these methods, you can uncover potential problems that might impact the coating’s adhesion and longevity.

For instance, one method might focus on surface moisture, while another examines moisture deeper within the slab. Together, they provide a fuller picture of the slab’s condition. This multi-faceted approach reduces the chances of coating failures like bubbling, peeling, or delamination, ensuring a durable and professional finish.

How do seasonal changes impact concrete moisture testing?

Seasonal shifts can have a big impact on the moisture levels in concrete, potentially throwing off test results if these changes aren’t taken into account. For example, during rainy or humid periods, concrete is more likely to absorb extra moisture. On the flip side, colder and drier months often lead to lower moisture levels on the surface.

To get reliable results, it’s crucial to factor in these environmental conditions during testing. Accounting for seasonal variations ensures better coating adhesion and supports long-lasting performance.

Why is it important to test concrete moisture before applying a coating?

Testing the moisture levels in concrete is a crucial step before applying any coating. Why? Because too much moisture trapped in the concrete can lead to problems like peeling, blistering, or bubbling. These issues don’t just ruin the look of the surface – they can also weaken the coating’s durability over time.

Taking the time to check and manage moisture levels can save you from expensive repairs down the line. It also helps ensure the coating adheres well, giving you a smooth, long-lasting finish. Proper preparation makes all the difference when it comes to protecting and enhancing your concrete surfaces.
