Sealing concrete properly is critical to protect your foundation from hydrostatic pressure, which occurs when water pushes against the structure due to saturated soil. This can lead to leaks, cracks, and structural damage if not addressed. Here’s a quick overview of how to prepare, seal, and maintain concrete to handle water pressure effectively:

• Understand Hydrostatic Pressure: Water weighs over 60 lbs per cubic foot, creating immense pressure on concrete, especially during heavy rain or rising water tables.
• Preparation is Key: Clean the surface, repair cracks, and test for moisture before applying any sealer. Skipping prep leads to failure.
• Choose the Right Sealer: Options include penetrating sealers (best for long-term protection), cementitious slurries (temporary fixes), and industrial coatings (durable for heavy-duty use).
• Application Tips: Apply sealers in thin, even coats, ensuring the surface is dry and free of contaminants. For cracks, use polyurethane resin or hydraulic cement.
• Maintenance: Inspect regularly for signs of wear, reapply sealers as needed, and integrate drainage solutions to reduce water pressure.

Pro Tip: Penetrating sealers, like silicates, offer the best protection against both positive and negative hydrostatic pressure by creating a deep, permanent barrier within the concrete.

Keep reading to learn detailed steps for sealing concrete, choosing the right materials, and maintaining long-term protection against water damage.

Concrete Sealing How-To – Easy DIY Concrete Waterproofing!

Preparing the Concrete Surface for Sealing

Once you understand hydrostatic pressure and why sealing is essential, the next step is preparing the concrete surface. This step is key to ensuring your sealer performs as expected and lasts for years. Skipping it? That’s a recipe for sealers that fail in no time. As the experts at RadonSeal explain:

"Proper preparation is the most important step before applying any garage floor sealer, sealant, or coating. Skipping prep is the #1 reason sealers and coatings fail."

Here’s how to do it right: focus on cleaning, repairing, and testing for moisture.

Cleaning and Removing Contaminants

Before sealing, you need to get rid of anything that could interfere with the sealer’s adhesion – think oil, grease, stains, dirt, and dust. Start by sweeping the surface thoroughly. Then, apply a degreaser or trisodium phosphate (TSP) to tackle any oily spots. Once that’s done, use a pressure washer to clean the area, and let it dry for at least 24 hours.

If you notice water beading on the surface, it’s a sign there’s an old sealer in place. In that case, remove it using chemical strippers or sandblasting. For smooth surfaces, etching or grinding can help open up the pores so the new sealer can penetrate effectively. Keep in mind that air temperatures should stay above 50°F during application and for at least 24 hours afterward.

Repairing Cracks and Voids

Cracks and voids in concrete can let water seep in, especially under hydrostatic pressure. To fix leaks, hydraulic cement works wonders – it sets in just 3–5 minutes, blocking water effectively. Be sure to mix it in small batches to avoid wasting material.

For vertical cracks, polyurethane foam injection kits are a great solution. If the crack is deeper than 1/4 inch, use a backer rod or sand to prevent the repair material from seeping too far. For concrete block walls that stay wet, you might need to drill 3/8-inch weeping holes in the bottom blocks to drain trapped water. Allow at least four days for the wall to dry before sealing.

Testing for Moisture Levels

Concrete needs to be dry – both on the surface and internally – before sealing. For new concrete, allow at least 28 days for curing before you start.

A simple way to test for moisture is the plastic sheet method. Tape a 24-inch by 24-inch piece of plastic to the floor and leave it for 18 to 24 hours. If you notice condensation on the underside of the plastic or the concrete looks darker, the surface is still too wet for sealing. For a more accurate reading, use a vapor transmission test kit with calcium chloride. These kits can measure how much moisture is moving through the slab over a 24-hour period. Ideally, you’re looking for a relative humidity level of 75% or lower for most sealing projects.

Avoid applying sealer if rain is in the forecast within the next 24 hours or if the concrete’s surface temperature is within 5°F of the dew point. Moisture could condense on the surface, undermining the sealer’s effectiveness. In damp areas like basements, fans, dehumidifiers, or heaters can help dry out residual moisture before sealing.

Choosing the Right Sealing Material for Hydrostatic Pressure

Picking the right sealer is key to protecting against water pressure – whether it’s pushing in from the outside (positive pressure) or seeping in from behind the wall (negative pressure). A poor choice can lead to peeling, bubbling, or even complete failure in just a few months.

There are three main types of sealers to consider: penetrating sealers, cementitious waterproofing slurries, and industrial coatings. Each serves a unique purpose in managing hydrostatic pressure. Let’s break down their properties to help you decide which one fits your needs.

Penetrating Sealers

Penetrating sealers work by soaking into the concrete and chemically reacting with its minerals. Silicate-based sealers, for instance, react with lime and alkalis in the concrete to create a hardened crystalline structure within the pores. Products like RadonSeal Plus can penetrate up to 4 inches below the surface, sealing capillaries and pores. These sealers are designed to handle both positive and negative hydrostatic pressure, making them a great choice for basements and foundations. They’re also permanent and allow the concrete to "breathe", meaning water vapor can escape while liquid water is blocked.

Silane and siloxane sealers, on the other hand, penetrate only about 1/8 to 1/4 inch into the surface. They act more as water repellents than pressure barriers. These are better suited for driveways and decorative outdoor concrete exposed to rain and surface moisture but aren’t effective for standing water or significant negative pressure.

Coverage for penetrating sealers typically ranges from 250 to 300 square feet per gallon. High-quality options like RadonSeal Plus cost between $141.00 and $239.00, depending on the volume purchased.

Cementitious Waterproofing Slurries

Cementitious waterproofing slurries are thick coatings made from a mix of Portland cement and sand. When applied to interior foundation walls, they create a water-resistant barrier capable of handling moderate hydrostatic pressure. However, they can crack at cold joints and trap moisture behind them. Over time, this can lead to problems like efflorescence – a white, powdery salt residue – and even cause the coating to separate from the concrete. Because of these limitations, cementitious slurries are best used as a temporary fix for active leaks or as part of a multi-stage sealing system, rather than as a long-term solution.

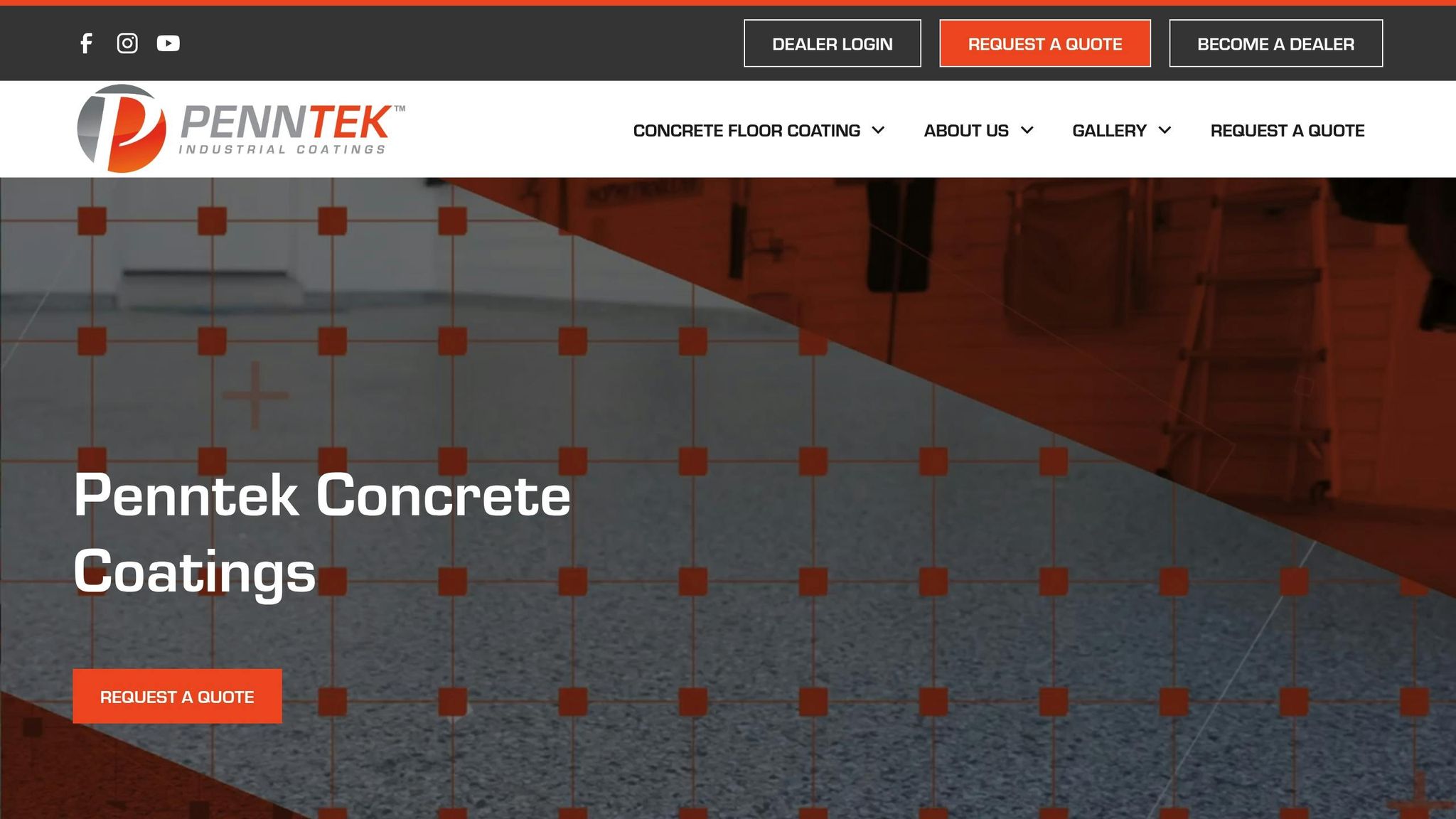

Industrial Coatings like Penntek Evolution

For heavy-duty spaces like garages, commercial facilities, and industrial areas, industrial coatings provide exceptional strength and durability. For example, Croc Coatings‘ Penntek Evolution system is four times stronger than traditional epoxy. It offers excellent resistance to chemicals, impacts, and abrasion, while also being UV stable, antibacterial, antimicrobial, and slip-resistant.

However, industrial coatings form a non-breathable, impermeable layer on the concrete. If negative-side hydrostatic pressure (water pushing up from below) is present, this can lead to bubbling, blistering, or even delamination of the coating. To avoid these issues, it’s crucial to pre-treat the concrete with a deep-penetrating silicate sealer before applying an industrial coating, especially in areas like basements or on-grade slabs.

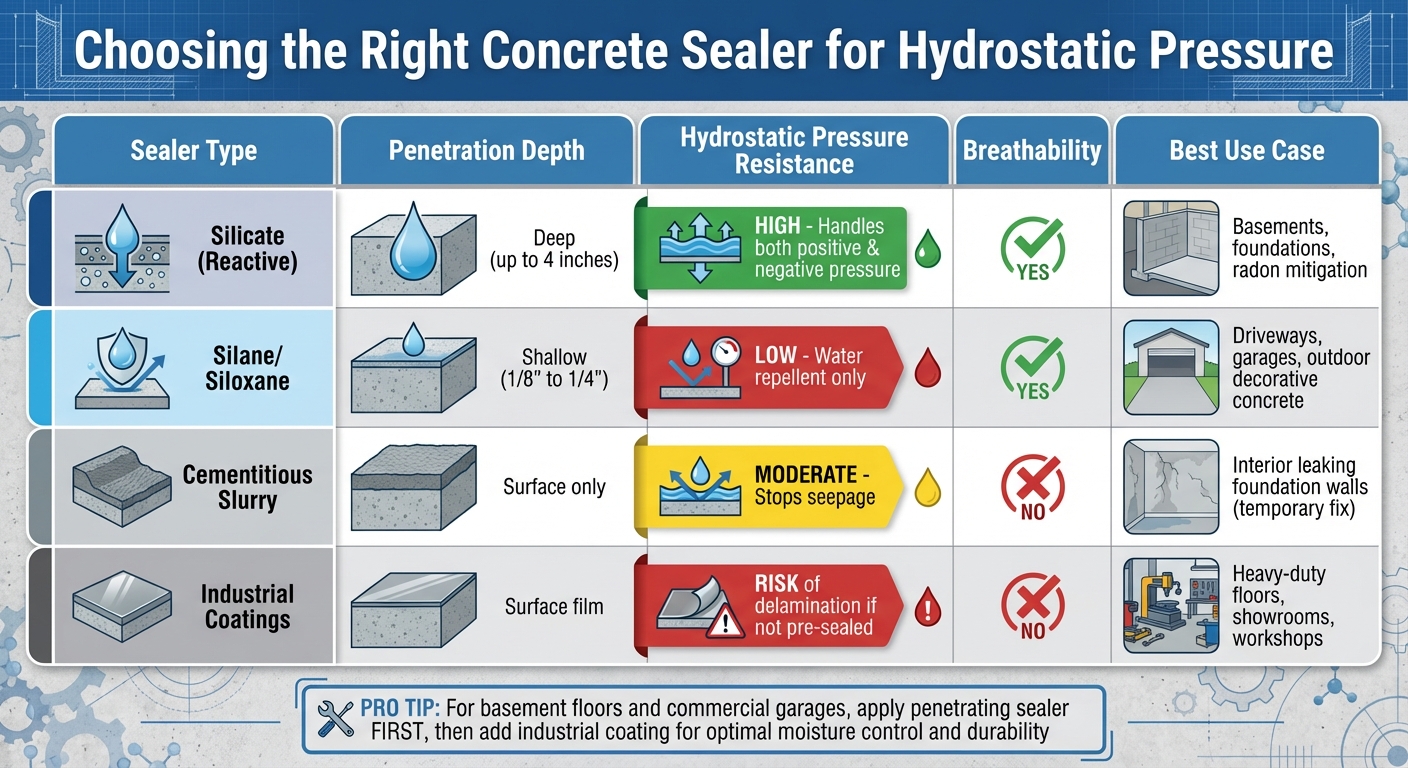

Sealer Type	Penetration	Hydrostatic Pressure Resistance	Breathability	Best Use Case
Silicate (Reactive)	Deep (up to 4")	High (handles both positive & negative)	Yes	Basements, foundations, radon mitigation
Silane/Siloxane	1/8" to 1/4"	Low (water repellent only)	Yes	Driveways, garages, outdoor decorative concrete
Cementitious Slurry	Surface only	Moderate (stops seepage)	No	Interior leaking foundation walls
Industrial Coatings	Surface film	Risk of delamination if not pre-sealed	No	Heavy-duty floors, showrooms, workshops

For projects that demand both moisture protection and a durable, finished surface – like a basement floor or commercial garage – a common method is to first apply a penetrating sealer, followed by an industrial coating like Penntek Evolution. This combination ensures effective moisture control while providing a tough, long-lasting surface. These material choices pave the way for the detailed application techniques covered in the next section.

sbb-itb-a0e5ae3

Step-by-Step Guide to Sealing Concrete

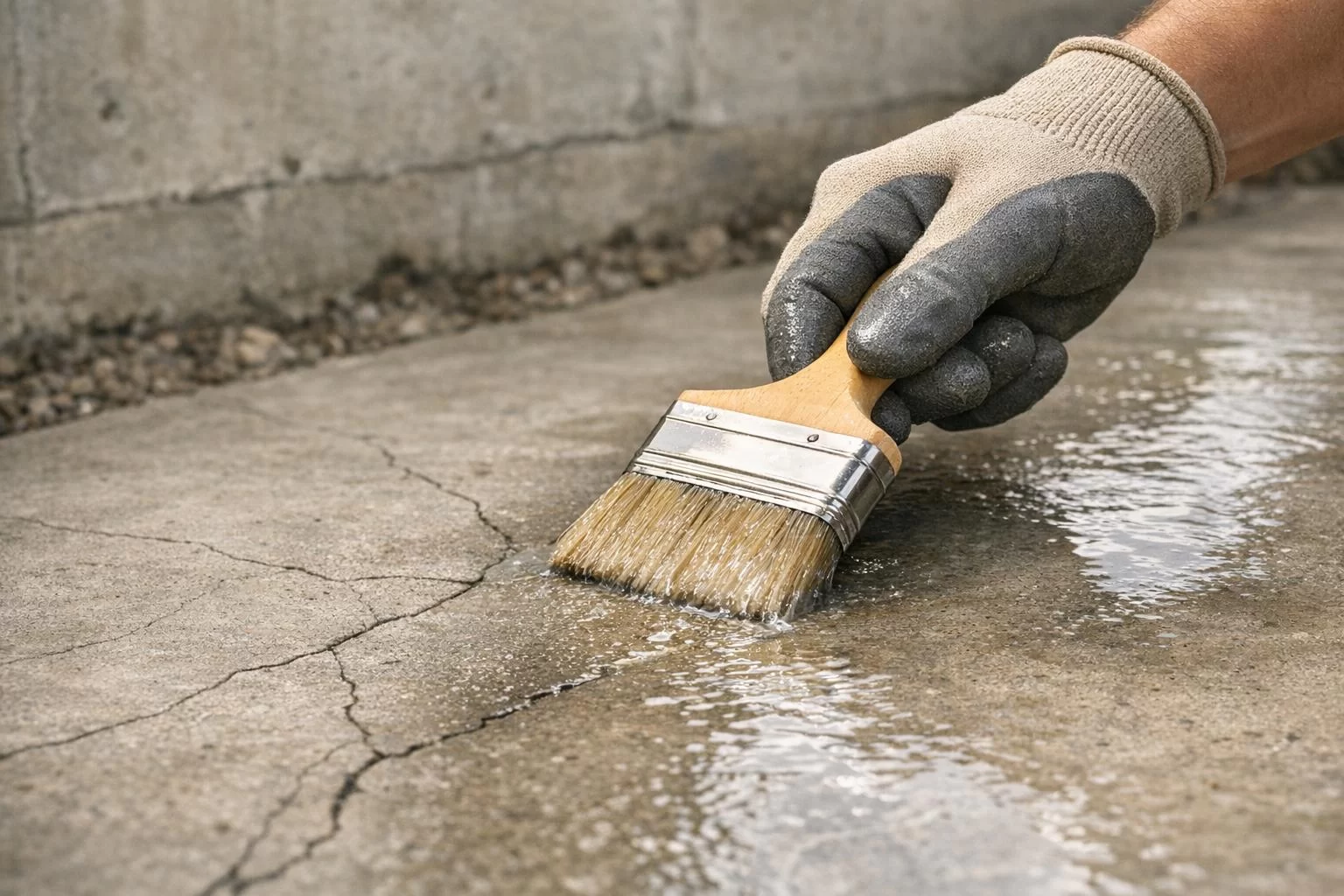

Once you’ve chosen the right sealer, it’s time to apply it. Each type of sealer has specific application methods, and following the correct steps is key to creating a watertight seal that can handle hydrostatic pressure.

Applying Penetrating Sealers

Start by cleaning the surface thoroughly. Remove any oil, grease, dirt, or old sealers. If there’s efflorescence (that white, chalky residue), scrub it off with a wire brush or cleaner to open up the pores of the concrete.

If the concrete is saturated with water, let it dry for at least four days. For water-retaining block surfaces, ensure proper drainage before moving forward. Once dry, begin applying the sealer.

Use a low-pressure garden sprayer, roller, or brush to apply the sealer, making sure the surface is evenly saturated without any puddles forming. Many penetrating sealers designed for hydrostatic pressure require a "wet-on-wet" application – this means applying a second coat about 10 minutes after the first, while it’s still wet. This approach enhances absorption and creates a stronger internal barrier.

Timing and conditions matter. Apply the sealer when the air and surface temperatures are between 50°F and 90°F, and avoid applying it if rain is expected within the next 24 hours. For new concrete, wait at least 28 to 30 days to allow it to cure fully before sealing. Coverage typically ranges from 200 to 300 square feet per gallon, depending on the porosity of the concrete. In areas with challenging hydrostatic pressure, let the sealer cure for 7 to 10 days before adding any secondary coatings or finishes.

Step	Actions for Hydrostatic Pressure Situations
1. Clean	Remove efflorescence, stains, and old coatings.
2. Drain	Drill weep holes if water is trapped inside blocks.
3. Dry	Ensure the surface is completely dry (24–96 hours of dry weather).
4. Apply	Spray the first coat until the surface is saturated; avoid puddling.
5. Re-coat	Apply the second coat within 10 minutes (wet-on-wet).
6. Cure	Allow 7–10 days before applying additional finishes.

Next, let’s look at how cementitious coatings can be a great option for areas with active water seepage.

Using Cementitious or Crystalline Coatings

Cementitious and crystalline coatings work differently from penetrating sealers. These products are mixed with water to create a thick slurry, which is then applied with a brush or trowel in multiple layers. This ensures complete coverage, particularly in areas where water is actively seeping through.

Before applying these coatings, strip the surface down to bare concrete. Remove any paint, oil, grease, or efflorescence. For block foundations, drill weep holes to relieve hydrostatic pressure and let the blocks dry for at least four days before sealing.

"RadonSeal works by being absorbed by porous concrete, reacting with lime and alkalis internally, and curing as a hardened mineral within the microscopic pores of the concrete."
– RadonSeal

Unlike topical coatings, crystalline sealers cure within the concrete itself, making them resistant to peeling or being pushed out by water pressure. Once the sealer has cured, you can plug any weep holes using caulk, epoxy, or a concrete patching compound.

Injecting Polyurethane Resin for High-Pressure Cracks

For actively leaking cracks under high hydrostatic pressure, injecting polyurethane resin is an effective fix. This method involves injecting a flexible, expanding resin directly into the crack to create a watertight seal.

First, prepare the crack by chiseling it into a 1/4-inch V shape to improve adhesion. For cracks or joints wider than 1/2 inch, insert a compressible foam backer rod, leaving about 1/8 inch of space for the sealant. Remove any loose debris or dust from the crack.

Next, install injection ports along the crack at 6- to 12-inch intervals. Seal the surface of the crack with a fast-setting epoxy paste, leaving only the ports exposed. Once the epoxy has cured, inject the polyurethane resin starting at the lowest port and working your way up. The resin expands to form a flexible, waterproof seal that can stretch up to 700%.

This method works well alongside other sealing techniques by tackling active leaks directly. Before sealing cracks, address any underlying water management issues, such as poor grading or inadequate gutters, to reduce hydrostatic pressure at its source. This step helps prevent cracks from reopening or new ones from forming. Always wear chemical-resistant gloves, protective eyewear, and ensure proper ventilation when working in enclosed spaces.

For expert advice on sealing concrete and managing hydrostatic pressure effectively, consider reaching out to Croc Coatings. Their Penntek Evolution industrial coating system offers durable solutions for both residential and commercial needs.

Post-Sealing Inspection and Maintenance

After the seal has fully cured, keeping up with regular inspections and maintenance is key to ensuring it continues to perform well against hydrostatic pressure.

Conducting a Water Test

To check if your seal is still effective, try the water beading test. Simply sprinkle water on different areas of the sealed concrete. If the water beads up and rolls off, your seal is doing its job. But if the water soaks into the concrete and darkens the surface, it’s a sign that the sealer has worn off and needs to be reapplied.

In areas prone to negative hydrostatic pressure – where water pushes from behind the seal – watch for damp spots, surface moisture, or white mineral deposits known as efflorescence. Pay special attention to basement walls and floors after heavy rainfall or snowmelt, as these conditions often increase hydrostatic pressure. Another way to test for moisture is by taping a 2-foot by 2-foot plastic sheet to the concrete for 24 hours. If water droplets form underneath the plastic, it indicates moisture is seeping through. To extend the life of your seal, ensure proper drainage to minimize water buildup around the foundation.

Integrating Drainage Solutions

Sealing alone can’t solve hydrostatic pressure issues if water continues to pool around your foundation. Effective drainage works as a long-term companion to sealing. Keep gutters and downspouts clear, and make sure the ground slopes away from your foundation to prevent water from collecting against sealed surfaces.

"Ultimately, if hydrostatic pressure is the culprit, the only way to correct it is to eliminate the pressure of standing water, a significant undertaking in any situation." – Jason Spangler, Wagner Meters

For more severe water challenges, consider installing French drains or sump pumps to manage water accumulation near sealed areas.

Periodic Maintenance and Reapplication

Proper maintenance is just as important as the initial application to ensure your seal remains effective over time. Different sealers have varying lifespans: penetrating sealers can last 5–10 years, epoxy and polyurethane coatings require attention every 3–5 years, and acrylic sealers may need reapplication every 1–3 years, especially in areas with frequent freeze-thaw cycles.

Keep an eye out for signs that the seal is failing, such as fading, visible scratches, stubborn stains, or efflorescence. When it’s time to reseal, stick with the same type of sealer originally used. If you decide to switch – like moving from a solvent-based to a water-based sealer – be sure to completely remove the old sealer first. Apply thin, even coats to avoid trapping moisture, which can cause bubbling or a cloudy finish. For professional resealing, expect to pay between $1.50 and $3.50 per square foot.

For expert advice on maintaining concrete seals and managing hydrostatic pressure, Croc Coatings offers professional services with a lifetime warranty.

Conclusion: Protecting Your Concrete from Hydrostatic Pressure

Shielding your concrete from hydrostatic pressure requires careful preparation, the right sealer, and precise application. Start by ensuring the surface is free from contaminants and allowing the concrete to cure for 28–30 days.

Penetrating sealers like silanes, siloxanes, or silicates are your best bet for tackling hydrostatic pressure. These sealers chemically bond within the concrete pores, creating a permanent barrier that resists water pressure without peeling or being forced out. As described, RadonSeal "works by being absorbed by porous concrete, reacting with lime and alkalis internally, and curing as a hardened mineral within the microscopic pores… Unlike waterproofing paints or topical-clear coatings, RadonSeal withstands hydrostatic water pressure".

The application process is just as critical as the materials you choose. For even coverage, apply two thin coats at perpendicular angles. Don’t forget to seal expansion joints and cracks using high-quality polyurethane sealants, which can stretch up to 700% while maintaining their bond, effectively blocking potential leak paths. Ensure temperatures are above 50°F and the conditions are dry before starting. Applying sealers to damp surfaces can lead to bubbling, haziness, or adhesion failure.

With penetrating sealers providing protection for 5 to 10 years and proper drainage systems in place, you’re setting up a solid defense against hydrostatic pressure. For an even more durable solution, consider Croc Coatings’ Penntek Evolution system. Designed to outperform traditional epoxy, it comes with expert application services and a lifetime warranty for both residential and commercial spaces across North Idaho, Eastern Washington, Spokane, and the Tri-Cities area.

FAQs

How can I tell if my concrete needs to be resealed due to hydrostatic pressure?

If your concrete is dealing with hydrostatic pressure, it’s probably time to reseal it. Look out for signs like water seepage or pooling, damp spots, or the appearance of mold and mildew. Other red flags include white, chalky residue (efflorescence), bubbling or peeling coatings, or even cracks and surface damage such as spalling. Tackling these problems early can help protect your concrete and keep it in good condition.

What’s the best way to choose the right sealer for my concrete surface?

To pick the right sealer for your concrete, think about where the surface is, how it’s used, and what it’s exposed to. For outdoor areas, go with a UV-resistant sealer that can stand up to rain and temperature swings. For indoor spots like basements or garages, prioritize sealers that offer durability and protect against moisture, chemicals, or heavy foot or vehicle traffic.

You’ll also need to choose between two main types of sealers: film-forming sealers and penetrating sealers. Film-forming options create a protective layer on the surface and can enhance the concrete’s appearance, while penetrating sealers soak into the concrete, providing long-term water resistance without changing its look. If you’re dealing with hydrostatic pressure, advanced solutions like Croc Coatings’ Penntek Evolution are designed to deliver top-notch protection and durability.

Don’t forget to think about the finish you prefer – glossy, matte, or textured – and make sure the concrete is properly cleaned, dry, and compatible with your chosen product. For more help, Croc Coatings offers personalized advice and step-by-step application tutorials to ensure a professional-looking result.

How can I maintain my concrete sealer to ensure long-lasting protection?

To keep your concrete sealer in top shape for as long as possible, regular upkeep is essential. Start by cleaning the surface often – removing dirt, debris, and stains helps prevent the coating from wearing down over time. If you notice any cracks or damage, fix them right away to stop moisture from sneaking in and weakening the seal.

For indoor spaces, especially areas like basements where humidity tends to run high, consider using vapor barriers or dehumidifiers to manage moisture levels effectively. Also, steer clear of harsh chemicals or abrasive cleaners, as these can erode the sealer. If your concrete is regularly exposed to sunlight, try to limit excessive UV exposure to reduce the risk of fading or deterioration. And don’t forget to stick to the manufacturer’s guidelines for reapplying the sealer to ensure it continues to provide the protection you need.
