Inspecting concrete before applying a coating is essential to avoid common concrete coating failures like peeling, bubbling, or delamination. Even if the surface looks fine, issues like moisture, cracks, or contaminants can ruin the coating over time. Proper inspection ensures a durable, long-lasting result.

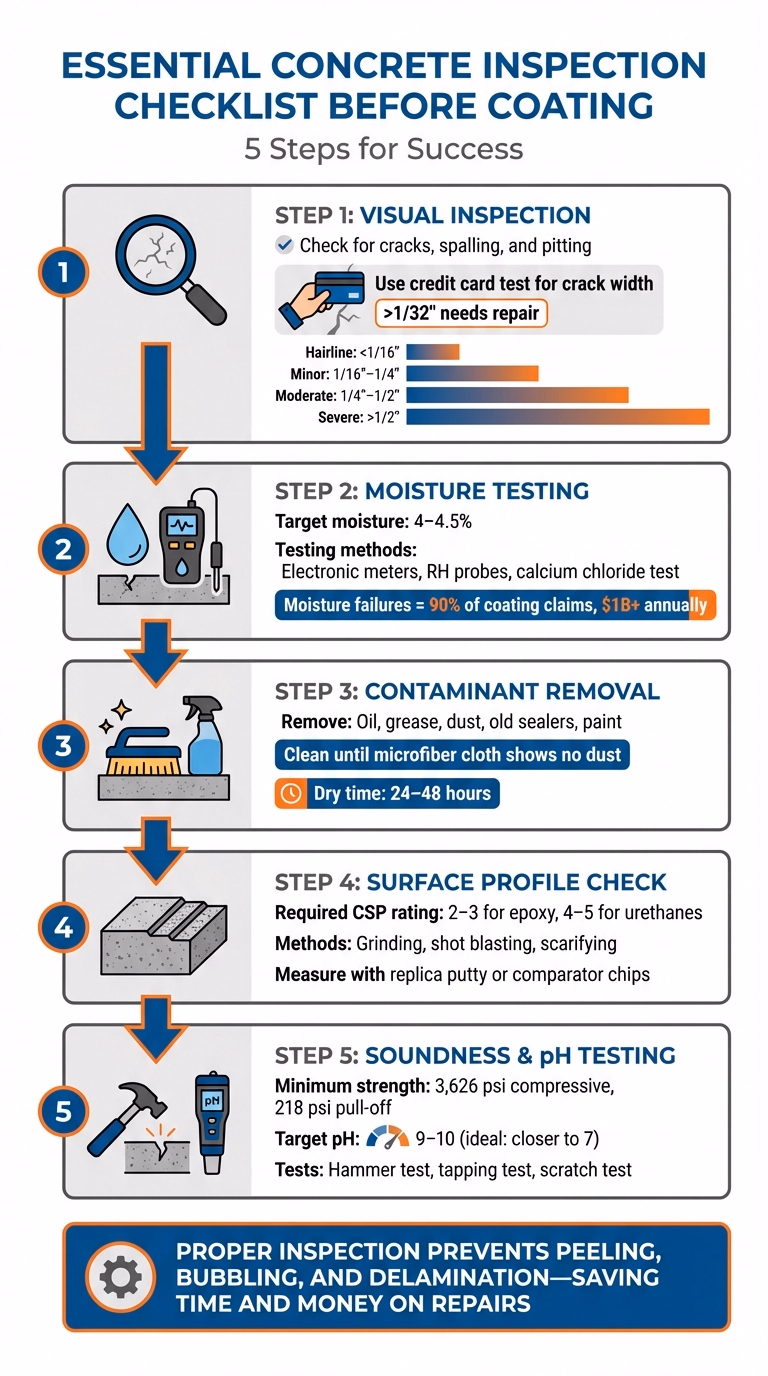

Key Steps to Inspect Concrete:

• Visual Inspection: Identify cracks, spalling, and pitting. Repair defects before coating.
• Moisture Testing: Ensure moisture levels are within safe limits to prevent bubbling or delamination.
• Contaminant Removal: Clean oil, grease, dust, or old sealers that hinder adhesion.
• Surface Profile Check: Confirm texture meets required standards (e.g., CSP 2-3 for epoxy).
• Soundness Testing: Verify the concrete is strong and stable enough for coating.

Fixing issues upfront is far cheaper and faster than dealing with coating failures later. Following these steps can save time, money, and effort while ensuring a reliable coating.

How to Prepare and Test Concrete for a Coating (Tools and Tips)

sbb-itb-a0e5ae3

Visual Inspection for Defects and Damage

Carefully examine the entire slab for any issues that might affect coating adhesion or create visible flaws. Look closely at every square foot to spot cracks, spalling, pitting, or other irregularities. A flashlight can help you detect subtle flaws or small voids that might otherwise go unnoticed. Once the general inspection is complete, focus on specific defects, starting with cracks and spalling.

Finding Cracks and Spalling

Cracks can be grouped by their width: hairline cracks are less than 1/16", minor cracks fall between 1/16" and 1/4", moderate cracks range from 1/4" to 1/2", and significant cracks are anything wider than 1/2". A quick way to assess crack width is the "credit card test." If a crack is wider than the edge of a credit card (approximately 1/32"), it needs repair before applying a coating. For a more accurate assessment, use a straightedge or a 4-foot level to check for uneven surfaces. If one side of the crack is higher than the other, it could indicate settlement or heaving rather than normal shrinkage.

"If a crack is thicker than the thickness of a credit card, it must be mended properly before the coating is applied." – Southwest Exteriors

Spalling occurs when the concrete surface starts to flake or peel away. Shallow spalling is less than 1/4" deep, while deep spalling exposes the aggregate below. Tap the affected areas with a tool to listen for a hollow sound, which suggests loose material that needs more extensive repair. If spalling covers more than 25% of the surface, it’s classified as moderate to severe damage and may require full resurfacing. Additionally, pitting (small surface holes) and chips should be filled to ensure a smooth, even surface for coating.

Here’s a quick guide to assess damage severity and the recommended actions:

Damage Severity	Visible Signs	Recommended Action
1 – Cosmetic	Hairline cracks (<1/16"), minor wear	Seal cracks, clean surface
2 – Minor	Cracks 1/16"–1/4", shallow spalling (<1/4")	Crack filler, spot patching
3 – Moderate	Cracks 1/4"–1/2", spalling over 10–25% of area	Resurfacing and crack repair
4 – Severe	Cracks >1/2", deep spalling, exposed rebar	Professional patching or lifting
5 – Critical	Settlement >1", structural movement, heaving	Likely full replacement

Once surface defects are addressed, it’s time to check for deeper structural concerns.

Spotting Structural Problems

Structural issues can compromise the integrity of the slab and often require immediate attention. For example, rust marks near cracks may indicate that the internal rebar is corroding, which weakens the concrete’s structural strength. Brown or orange discoloration along a crack often points to active corrosion, and the visible stain is usually just the tip of the iceberg, signaling a larger area of internal damage.

To monitor cracks for potential growth, mark their endpoints with a date. If a crack widens more than 0.5 mm within a week, it’s time to call a professional. Also, if the estimated cost of repairing structural defects is more than half the cost of replacing the slab, replacement is generally the better option. A professional evaluation by a licensed structural engineer typically costs between $300 and $700.

Testing Concrete Moisture Content

After addressing visible defects, it’s crucial to measure the concrete’s moisture content to avoid future coating issues. Moisture-related flooring failures account for over 90% of claims in this industry, leading to damages exceeding $1 billion annually.

Why Moisture Testing Matters

Concrete is inherently porous and retains water from the mixing process, which enhances its workability. For perspective, a 1,000-square-foot slab that’s 4 inches thick can hold about 1,700 pounds of free water. If this moisture gets trapped beneath a non-breathable coating, it will try to escape, often causing the coating to delaminate, blister, or peel. Other issues like pinholes, bubbles, staining, and even mold growth can also arise when moisture levels are too high.

"Even if your concrete looks dry, hidden moisture within the slab can wreak havoc on a new floor coating." – Tom Dassie, CustomCrete

For most standard flooring or waterproofing primers, the moisture content should ideally fall between 4% and 4.5% before application. Testing helps determine whether a standard primer is sufficient or if a specialized epoxy moisture barrier is needed.

Methods for Testing Moisture

Before testing, ensure that the ambient conditions and substrate have been stabilized at normal operating temperatures (approximately 75°F ±10°F) and 50% relative humidity (±10%) for at least 48 hours.

Here are the most common methods for moisture testing:

• Electronic Moisture Meters (ASTM F2659): These devices provide quick, non-destructive readings of the top 0.75 to 1 inch of the concrete slab.
• Relative Humidity (RH) Probes (ASTM F2170): Sensors are inserted into drilled holes to measure internal moisture. While this method requires about 72 hours for stabilization, it offers a detailed profile of moisture deeper in the slab.
• Calcium Chloride Test (ASTM F1869): This test measures how much moisture vapor escapes from the slab by placing anhydrous calcium chloride under a sealed dome for 60–72 hours.
• Plastic Sheet Method (ASTM D4263): A simple visual test where a plastic sheet is taped to the floor for 18–24 hours. Condensation under the sheet indicates moisture presence.

If moisture levels exceed 4.5%, applying a specialized epoxy moisture barrier in two coats is recommended to prevent delamination. Additionally, techniques like diamond grinding or shot blasting can help release trapped moisture while improving adhesion.

Once moisture levels are within acceptable limits, you can move forward with additional surface preparation steps.

Checking Surface Cleanliness and Contaminants

Once you’ve prevented moisture-related coating failures by confirming the moisture levels, the next step is tackling contaminants that could hinder the coating’s adhesion. Before applying any coating, it’s crucial to ensure the concrete surface is completely clean. Skipping this step can jeopardize the success of the entire project.

Common Surface Contaminants to Look For

Carefully inspect the concrete for common contaminants like oil, grease, dirt, adhesives, paint, and dust. These substances act as barriers, preventing the coating from properly bonding with the surface. This is especially important for areas like garage floors, where even minor oil spots can cause issues.

"Any debris or contaminants left on the surface can affect the adhesion of the coating or polishing material." – Shane Dias, United Concrete Coating

Dust left behind from grinding or shot blasting is another frequent problem. These fine particles can lead to peeling or bubbling if not thoroughly removed. Once you’ve identified the contaminants, use a concrete surface prep inspection checklist and the right cleaning techniques to prepare the surface.

How to Clean the Surface Properly

After identifying contaminants, cleaning becomes the final step to ensure the surface is ready for coating. For oil-saturated spots, apply a concrete degreaser and scrub with a stiff-bristled broom or a rotary scrubber. Heavily contaminated areas may require specialized poultice treatments or multiple cleaning cycles. Always rinse thoroughly with fresh water to remove any leftover cleaning agents.

After mechanical profiling, vacuum the area and wipe it down with a microfiber cloth. A quick test: wipe a small section with a clean microfiber cloth – if it picks up any dust, more cleaning is needed. The surface should feel slightly rough and porous, signaling that it’s ready to bond with the coating. Allow the concrete to dry for 24–48 hours before moving forward.

Contaminant Type	Recommended Removal Method
Oil and Grease	Degreaser, rotary scrubbing, or specialized poultice
Dirt and Grime	Pressure washing and stiff-bristled broom scrubbing
Adhesives and Paint	Mechanical grinding or shot blasting
Dust and Fine Residue	Industrial vacuuming and microfiber tack cloth wiping
Cleaner Residue	Thorough fresh water rinsing and 24–48 hour dry time

Checking Surface Profile and Soundness

Before applying a coating, it’s essential to ensure the concrete’s texture and structural integrity can support proper adhesion. The surface profile refers to the roughness or texture created during preparation, while soundness assesses whether the concrete is strong enough to hold the coating without failing.

Surface Profile Requirements

The International Concrete Repair Institute (ICRI) rates concrete surface profiles on a scale from CSP 1 (smooth) to CSP 10 (very rough, with exposed aggregate). A rougher surface improves both chemical and mechanical bonding. The profile needed depends on the coating’s dry film thickness – thicker coatings generally call for a more aggressive profile.

Several tools and techniques are available to measure surface profiles:

• Replica putty: Mix two compounds, press them onto the surface, and let them cure for 5–10 minutes. The cured putty can be compared visually to ICRI coupons or measured with a micrometer.
• Comparator chips: Made of molded rubber, these samples let you quickly feel and compare the surface texture.
• Laser profilometry: This advanced method creates a detailed digital map of the surface’s roughness.

Surface profiles are measured in mils (thousandths of an inch) or microns, where 1 mil equals 25.4 microns.

Preparation Method	CSP Range	Typical Application
Grinding	CSP 1–3	Thin-film coatings and high-spot removal
Steel Shot Blasting	CSP 3–8	High-performance resinous floors
Scarifying	CSP 6–9	Heavy-duty overlays (followed by shot blasting)

Once the surface profile is verified, the next step is to confirm the concrete’s structural integrity.

Testing Surface Soundness

Soundness tests ensure the concrete can support a durable coating. The substrate must have a minimum compressive strength of 3,626 psi (25 MPa).

Here are common methods to test soundness:

• Scratch Test: Lightly score the surface with a screwdriver or pocket knife. A solid surface will only leave a shiny mark, while weaker areas may dislodge particles.
• Hammer Test: Strike the concrete with the edge of a hammer. A sharp rebound indicates sound material, while crumbling or dents suggest weakness.
• Tapping Test: Tap the floor with a hammer and listen for the sound. A clear "ring" signals solid concrete, while a "dull thud" points to delamination or hollow areas.

Watch for signs like flexing or loose particles, as these suggest poor adhesion beneath the surface.

For a definitive assessment, the pull-off adhesion test (ASTM C1583) is highly effective. This test involves bonding a disc to the surface and measuring the force needed to pull it off. A pull-off strength of at least 218 psi (1.5 MPa) is required for a coating-ready surface.

If weak areas are identified, remove them mechanically and fill voids with a compatible repair mortar. For slightly compromised surfaces, consider using a low-viscosity epoxy primer, which can penetrate and re-bond loose particles, creating a stable foundation. Address all issues before proceeding to the final pre-coating steps.

Measuring pH Levels and Neutralization

Monitoring and adjusting pH levels is essential to avoid adhesive breakdown and coating failure. Fresh concrete typically has a high pH, ranging from 11 to 13. Most coating manufacturers recommend a surface pH between 9 and 10 for proper bonding, though achieving a pH closer to 7 is ideal for reliable adhesion. Excessive alkalinity can weaken adhesives and jeopardize the bond between the coating and concrete, increasing the risk of polyurea coating failures.

How to Test pH Levels

To test pH levels, mix de-ionized water with a concrete sample. Begin by sanding a small area using 50- to 200-grit sandpaper to remove sealers, dust, or carbonated layers that may distort the true alkalinity underneath. Surface carbonation, caused by the reaction of atmospheric carbon dioxide with concrete alkalis, can lower the surface pH to around 8.5, even if the underlying layers remain highly alkaline.

Always use distilled or de-ionized water, as tap water contains minerals that could alter the results. Apply a few drops of this water to the sanded surface, wait 60 seconds, and then test with a pH strip. For greater accuracy, collect about 0.5 grams of concrete powder from the sanded area, mix it with 10–12 drops of distilled water, wait another 60 seconds, and test. A digital pocket meter can provide more precise readings and eliminates the need for color matching.

"Placing a few drops of deionized water on an undisturbed concrete surface is not enough to form a solution containing concrete particles." – Concrete Science

Avoid testing right after diamond grinding or shot-blasting, as these methods expose fresh concrete and can temporarily inflate pH readings. Also, keep surface temperature in mind during testing, as extreme temperatures might affect accuracy. If the pH is above 10, follow the neutralization steps outlined below.

Neutralizing High pH Surfaces

When the concrete’s pH exceeds 10, neutralization is necessary before applying any coating. For highly alkaline surfaces, scrub the area with a 10%–15% phosphoric acid solution, followed by a clean water rinse. Next, scrub the surface with a detergent, such as ROCK-POWER, and perform a final rinse to eliminate any remaining residues. Use potable water for rinsing and vacuum the surface thoroughly to remove residual salts.

Natural carbonation can also lower pH levels over time, typically bringing them into the safer range of 7 to 9, but this process can take up to two years. Keep in mind that the pH scale is logarithmic, meaning a one-point increase equates to a tenfold rise in alkalinity. Without proper neutralization, alkaline salts can migrate to the surface, potentially displacing adhesives or causing efflorescence – those unattractive white salt deposits that often appear at seams and joints. Properly neutralizing the surface ensures it is ready for strong and durable coating adhesion.

Pre-Coating Checklist

Confirming All Inspection Steps

Before applying any coating, it’s essential to confirm that every inspection step has been completed. This includes addressing defects, moisture levels, and contaminants, as these factors can make or break the success of the coating process. Begin with a visual inspection to ensure that all cracks, joints, spalling, and pitting have been repaired and ground flush. Next, look for contaminants such as oil, grease, adhesive residue, or old paint – these could interfere with proper adhesion.

For moisture, conduct tests using Moisture Vapor Emission Rate (MVER) or Relative Humidity (RH) methods. The surface should meet safe moisture thresholds, typically between 3–5 lbs per 1,000 sq. ft. over 24 hours. Finally, verify that the surface profile matches the coating’s requirements: for instance, CSP 2–3 for epoxy coatings or CSP 4–5 for industrial urethanes.

Once inspections are complete, clean the surface thoroughly. Use a professional-grade vacuum followed by a microfiber mop or tack cloth to remove any fine particles that could compromise adhesion. After pressure washing or deep cleaning, allow the surface to dry completely – this usually takes 24–48 hours. With these steps verified, you can shift your focus to preparing the work area for the coating application.

Getting Ready for Coating Application

Proper preparation of the work area is just as important as the surface itself. Protect adjacent surfaces by masking them with painter’s tape and plastic sheeting to ensure clean, precise edges. To stay organized, use a standardized documentation form, like the SSPC Daily Coating Inspection Report, to record critical details such as surface conditions, ambient conditions, and inspection criteria. Having a designated inspector review and sign off on the checklist ensures that all preparatory work aligns with project specifications.

Before mixing the coating materials, conduct a patch test in a small, inconspicuous area. This test allows you to confirm adhesion and color accuracy, helping to avoid costly errors down the line.

How Croc Coatings Ensures Quality

Croc Coatings takes these preparation steps even further to deliver durable, long-lasting results. Their certified installation team meticulously checks moisture levels, surface profiles, and cleanliness before applying their proprietary Penntek Evolution industrial coating system, which is designed to be 4x stronger than epoxy. By combining thorough preparation with professional-grade equipment and eco-friendly materials, Croc Coatings can complete installations in just one day. Plus, they back their residential projects with a lifetime warranty.

Whether it’s a garage floor, patio, pool deck, or commercial space in North Idaho, Eastern Washington, Spokane, or the Tri-Cities area, Croc Coatings’ attention to detail ensures your concrete coating will hold up for years to come. Their process is designed to provide not just a functional surface, but one that stands out for its durability and quality.

Conclusion

Key Takeaways

Inspecting concrete thoroughly is the backbone of a long-lasting coating. Skipping even one step in the process – like addressing cracks, spalling, or hidden issues such as moisture vapor and pH imbalances – can lead to peeling, bubbling, or complete coating failure.

Every inspection step serves a purpose in ensuring durability:

• Moisture testing: Keeps vapor emissions within safe limits to prevent bubbling and delamination.
• pH verification: Confirms the surface’s chemical compatibility with the coating (ideal concrete pH: 11–13).
• Mechanical profiling: Opens pores for a strong mechanical bond, with a recommended CSP of 2–3 for epoxy or 4–5 for heavy-duty urethanes.
• Structural soundness testing: Ensures the concrete can handle the load, meeting a minimum compressive strength of 3,626 psi and a pull-off strength of 218 psi for resinous systems.

By identifying potential problems early, proper inspection saves time, money, and effort while laying the groundwork for a durable coating. These principles are at the heart of Croc Coatings’ commitment to quality.

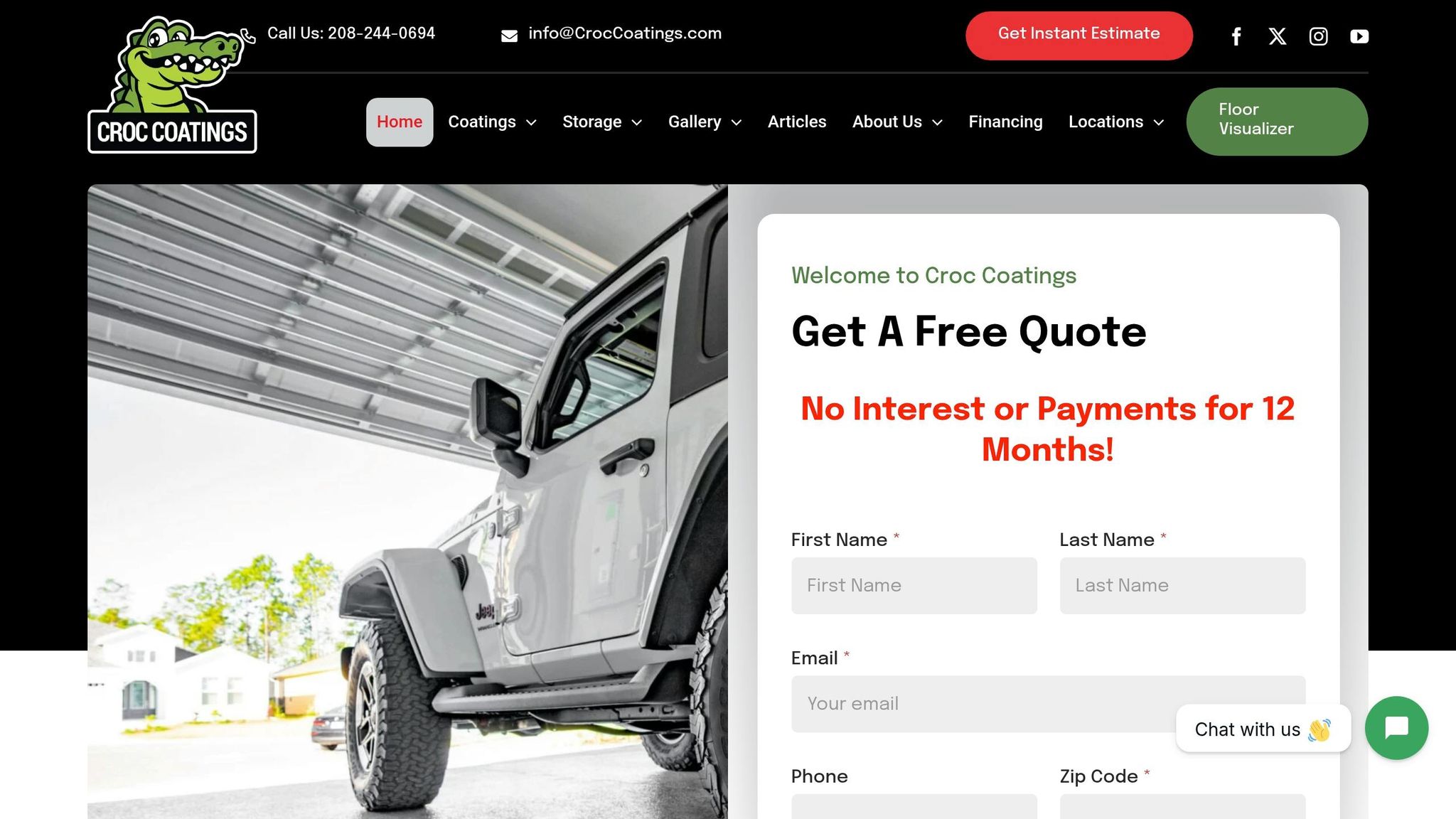

Croc Coatings: Your Partner for Durable Concrete Coatings

Croc Coatings offers more than just a coating service – they provide a partnership built on precision and expertise. Their certified installation team follows every critical inspection step, from moisture testing to surface profiling, ensuring your concrete meets the exact requirements for the Penntek Evolution industrial coating system. The result? Superior durability and peace of mind, backed by a lifetime warranty for residential projects.

Using professional-grade equipment and eco-friendly materials, Croc Coatings delivers long-lasting results with minimal disruption. Whether it’s a garage floor, patio, pool deck, or commercial space, their one-day installation process ensures you’re back to using your space quickly. Ready to enhance your concrete? Visit Croc Coatings to schedule your consultation and see the difference proper preparation makes.

FAQs

What repairs should I do before coating concrete?

Before applying a coating to concrete, it’s crucial to make sure the surface is in good condition and free from any issues. Here’s what you need to do:

• Fix any damaged areas by replacing deteriorated concrete and repairing cracks, holes, or joints with suitable materials.
• Get rid of contaminants like grease, oil, or old, loose coatings using mechanical cleaning methods.
• Allow new concrete to cure for at least 28 days, ensuring it includes a moisture vapor barrier.
• Conduct moisture vapor emission testing to avoid potential coating failures.

Taking these steps will help achieve durable and effective results.

Which moisture test is best for my slab?

The best way to test for moisture depends on what you’re trying to measure and how accurate you need the results to be. Calcium chloride tests are commonly used to determine moisture emission rates, but they might not always give the most dependable results. If you’re looking for precision, especially when working with critical coatings, a moisture meter – such as those made by Tramex – is often a better choice. While calcium chloride tests focus on emission rates, moisture meters are ideal for directly measuring the moisture content in concrete slabs.

How do I know my surface profile is correct for the coating?

To make sure the surface profile is ready for coating, check the concrete for thorough cleaning, absence of contaminants, and the right level of roughness or texture. You can use visual inspection or a surface profile gauge to match it with the coating’s requirements. A properly prepared surface should be clean, textured, and primed to ensure strong adhesion – key factors for durability and avoiding coating failure.
