Moisture Vapor Emission Rate (MVER) testing is a critical step in ensuring the durability and performance of concrete coatings. Skipping this process can lead to peeling, bubbling, discoloration, and even mold growth, ultimately resulting in costly repairs and voided warranties. MVER testing measures the amount of water vapor escaping from a concrete surface, helping contractors determine if the surface is ready for coating or if moisture mitigation is required.

Key points to know:

• Why it matters: Excess moisture causes 80% of coating failures, costing the U.S. construction industry over $1 billion annually.
• Common methods: The ASTM F1869 calcium chloride test measures surface moisture, while ASTM F2170 RH testing assesses internal moisture.
• Manufacturer standards: Most coatings require MVER levels between 3–5 pounds per 1,000 sq. ft. per 24 hours.
• Consequences of skipping testing: Adhesion loss, bubbles, blisters, surface damage, and voided warranties.

Proper MVER testing is affordable (around $10 per test) and ensures long-lasting coatings, lower repair costs, and warranty compliance. Contractors like Croc Coatings use both surface and internal moisture tests to guarantee reliable results and prevent failures.

Testing For Moisture Vapor In Your Concrete (Calcium Chloride Test)

What Happens When You Skip MVER Testing

Skipping moisture testing can lead to expensive headaches for property owners. Moisture-related issues rack up more than $1 billion annually in costs for the U.S. construction industry. These problems often emerge weeks or months after installation, forcing complete removal and reapplication of coatings – essentially doubling the project’s cost. Below, we’ll break down the key failures that arise when MVER testing is skipped: adhesion loss, surface damage, and warranty voidance.

Coating Adhesion Loss and Peeling

When moisture testing is skipped, trapped moisture disrupts the curing process, weakening the bond between the coating and the concrete. This leads to delamination, where the coating starts to peel or lift away from the surface. As moisture vapor builds up beneath the coating, it creates enough pressure to push the coating off the concrete entirely. The result? Peeling or lifting that can occur in large sections.

Moisture issues are no small problem – up to 80% of premature coating failures are tied to moisture problems. Initially, small areas may show signs of lifting, but the issue usually spreads as moisture continues to accumulate. Beyond just looking bad, adhesion loss reduces the coating’s ability to shield the concrete from damage.

Bubbles, Blisters, and Surface Damage

Trapped moisture vapor can also create bubbles and blisters, which ruin both the appearance and the protective function of the coating. These raised areas form as vapor pressure builds up beneath the surface, leading to ruptures that make the coating look uneven and unprofessional.

Bubbles and blisters weaken the coating’s protective barrier, allowing moisture, chemicals, and other contaminants to seep into the concrete. These defects often appear in areas with the highest moisture levels, and new problem spots tend to emerge as moisture continues migrating through the concrete over time.

Warranty Issues and Repair Costs

Skipping moisture testing can void manufacturer warranties, leaving property owners to shoulder all repair costs when moisture-related failures occur. Most warranties specifically require documented MVER or RH testing before any coating is applied. Without this documentation, claims are denied, and the financial burden falls on the owner.

Repairing these failures isn’t cheap. The process involves removing the damaged coating, re-preparing the surface, and reapplying the coating system. Costs can range from a few dollars to over $10 per square foot, depending on the scope of the damage. For a 2,000-square-foot garage, repair expenses could easily hit $6,000 to $20,000 or more. In commercial and industrial settings, downtime and lost productivity add even more to the financial strain.

How MVER Testing Works: Methods and Standards

MVER testing is essential for accurately assessing moisture levels in concrete, helping guide decisions about coatings and ensuring long-term performance. Let’s break down the key methods and standards that make this process reliable.

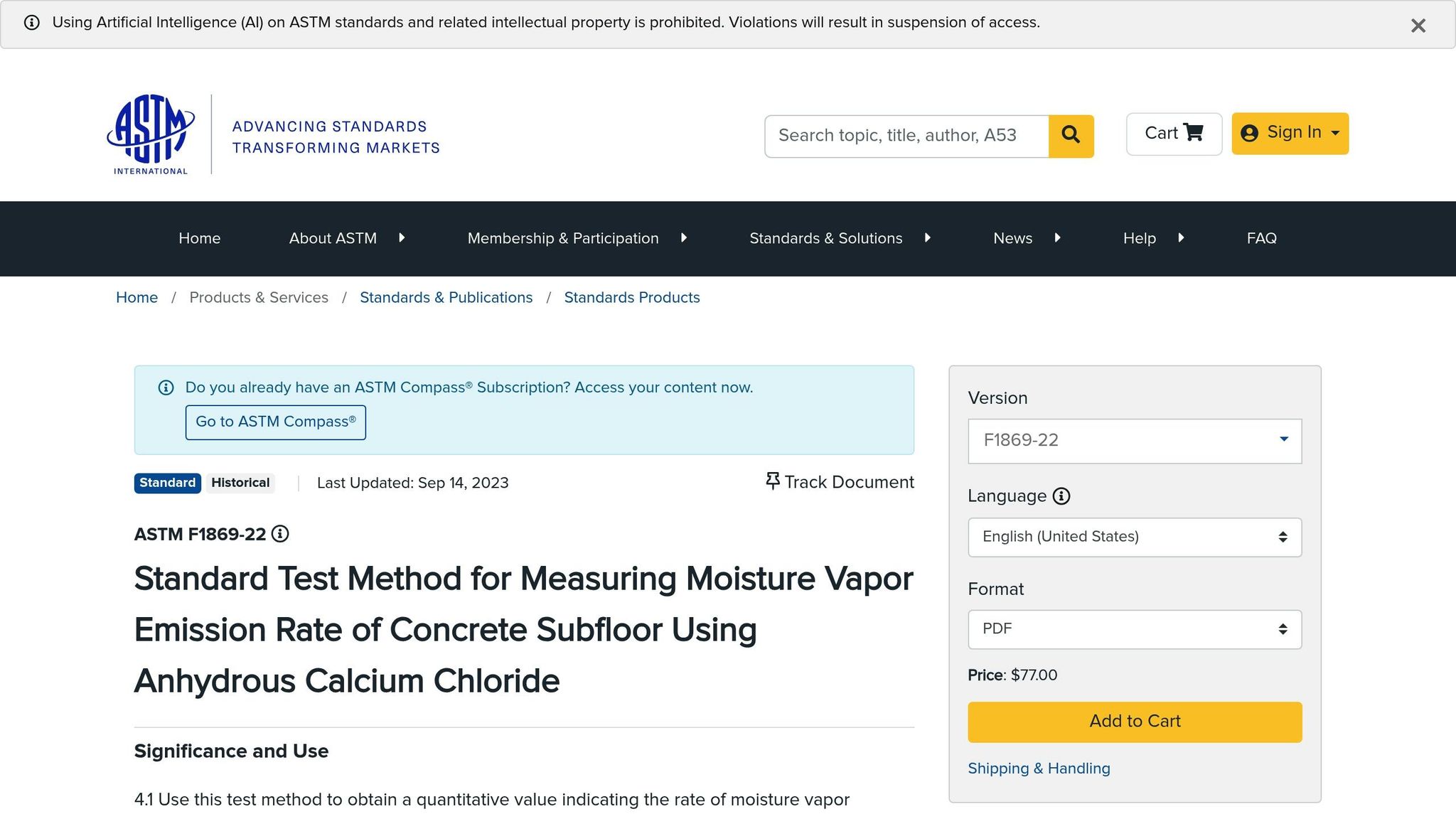

Calcium Chloride Test (ASTM F1869)

The calcium chloride test, outlined in ASTM F1869, measures how much moisture vapor escapes from the surface of a concrete slab. It works by leveraging the moisture-absorbing nature of calcium chloride. Here’s how it’s done: an open dish of anhydrous calcium chloride is placed on a cleaned and abraded section of concrete, then sealed under a dome (roughly 9″ x 9″ x 2″). After 60–72 hours, the weight gain of the calcium chloride indicates the moisture vapor emission rate, expressed as pounds per 1,000 square feet over 24 hours. For most coatings, manufacturers recommend results between 3 and 5 pounds for safe application.

ASTM guidelines suggest conducting three tests for the first 1,000 square feet of concrete and one additional test for every subsequent 1,000 square feet. Each test costs around $10, making it a relatively affordable option. However, this method only measures surface moisture, which can be a limitation. Factors like curing agents, sealers, or bond-breaking compounds used in modern construction may obscure deeper moisture levels that this test cannot detect.

Relative Humidity Testing

Relative Humidity (RH) testing goes deeper – literally. By measuring internal moisture levels, it offers a more comprehensive understanding of a concrete slab’s condition. This method involves drilling small holes into the slab and inserting probes at specific depths: typically 40% of the slab’s thickness for one-sided drying or 20% for two-sided drying. The results, expressed as percentages, provide direct insight into the slab’s internal moisture levels.

Unlike the calcium chloride test, RH testing can detect potential moisture issues below the surface, giving it an advantage in identifying risks that could lead to coating failures. However, it’s important to note that RH results don’t directly align with calcium chloride readings, as the two methods measure different aspects of moisture.

Testing Standards and Procedures

Adhering to ASTM standards is crucial for accurate and consistent results. The calcium chloride test follows ASTM F1869, which specifies requirements for surface preparation, equipment placement, and test duration. RH testing, on the other hand, is governed by ASTM F2170, which provides detailed guidelines for drilling, inserting probes, and allowing the drilled holes to reach equilibrium before taking readings.

Proper preparation is key. The concrete surface must be thoroughly cleaned and abraded to remove coatings, sealers, or contaminants that could skew results. Mistakes in preparation, timing, or equipment calibration can lead to inaccurate readings, potentially causing coating failures, voided warranties, and costly repairs. Using calibrated equipment and documenting every step of the process is essential to avoid these pitfalls.

To get the most accurate picture of a slab’s moisture profile, many professionals recommend using both the calcium chloride and RH tests. If only one method can be used, the choice often depends on the manufacturer’s recommendations, as these are typically tied to the product’s performance and warranty requirements.

Test Method	Measures	Depth	Format	Cost	Advantage
Calcium Chloride (MVER)	Surface moisture vapor emission	Surface only	Pounds per 1,000 sq ft per 24 hours	~$10 per test	Quick and affordable
Relative Humidity (RH)	Internal moisture levels	40% (one-sided) / 20% (two-sided)	Percentage	Varies	Internal assessment

sbb-itb-a0e5ae3

Long-Term Benefits of MVER Testing

MVER testing plays a key role in ensuring durable surfaces and reducing long-term expenses.

Longer Coating Life and Better Performance

Moisture testing is essential for coatings to perform as intended over time. When MVER testing confirms that concrete surfaces align with manufacturer guidelines – usually between 3 and 5 pounds of water per 1,000 square feet in 24 hours – coatings can bond effectively and retain their quality over the years.

Skipping proper moisture testing can result in excess moisture compromising the surface, which weakens coating adhesion. This can cause issues like premature aging, fading colors, and surface damage far earlier than anticipated. By thoroughly testing the substrate, property owners can ensure their coatings maintain their appearance and protective qualities for a much longer period. This not only extends the lifespan of the coating but also helps avoid unnecessary future expenses.

Lower Costs Through Prevention

The relatively low cost of MVER testing can save property owners from costly repairs. At about $10 per 1,000 square feet, it’s an affordable way to detect moisture issues early. Addressing these problems promptly can prevent the need for complete coating replacements. Tackling moisture concerns before they escalate into major failures also spares property owners from expensive remediation work. Additionally, the savings are amplified by the warranty coverage that proper testing supports.

Warranty Assurance

Moisture testing also protects your investment by meeting warranty requirements. Many coating manufacturers mandate documented moisture testing to honor warranties, and failing to meet these requirements can render the warranty void. This is particularly important for high-end systems. For example, Croc Coatings’ Penntek Evolution system includes a lifetime warranty, but only when proper moisture testing is conducted. This highlights the value of thorough testing in ensuring the longevity and reliability of premium coatings.

In short, MVER testing offers extended coating durability, lower repair costs, and peace of mind through warranty compliance. The small initial investment in moisture testing pays off significantly in the long run, making it an invaluable step in any concrete coating project.

Professional MVER Testing with Croc Coatings

Croc Coatings has made moisture testing a cornerstone of its installation process throughout North Idaho and Eastern Washington. This careful attention ensures their Penntek Evolution coating system delivers the durability and reliability clients expect from a high-performance industrial coating. By addressing moisture issues upfront, they effectively prevent the coating failures caused by excess moisture that were previously discussed.

Complete Moisture Testing Process

Croc Coatings takes moisture testing seriously, following a precise and efficient process. Before installation, they conduct ASTM F1869 moisture testing. This involves placing pre-weighed calcium chloride dishes on prepared concrete surfaces, sealing them with protective domes, and measuring any weight gain after 60–72 hours. The results provide moisture emission rates in pounds per 1,000 square feet per 24 hours.

For projects requiring a deeper analysis, they also perform in-situ relative humidity (RH) testing in accordance with ASTM F2170 standards. This dual approach offers a comprehensive understanding of moisture levels. As Howard Kanare, senior principal scientist at CTLGroup, highlights:

"Relative humidity probes tell you what’s going on in the body of the concrete, which is more useful in the long term."

For example, during a commercial project in Spokane, initial MVER testing revealed high moisture levels in the concrete slab. Instead of moving forward with the installation, Croc Coatings applied a moisture mitigation primer and retested the slab to confirm safe levels. Only then did they proceed with installing the Penntek Evolution system, avoiding potential coating failures and ensuring the client avoided costly downtime.

Strong Coatings with Lifetime Warranty

Croc Coatings stands behind its work by offering a lifetime warranty when moisture standards are met. As a Penntek Certified Partner, they follow strict installation protocols, including mandatory moisture testing, to maintain both their workmanship standards and the manufacturer’s warranty. Detailed documentation of all moisture tests is critical for warranty claims, as most manufacturers require verified moisture readings. By keeping thorough records of testing and mitigation efforts, Croc Coatings safeguards its clients’ investments while providing long-term confidence in their installations.

Custom Solutions for Different Spaces

Croc Coatings’ rigorous testing process allows them to tailor solutions for various project requirements. For residential garage floors, they typically perform standard MVER testing in areas prone to water intrusion. In contrast, high-traffic industrial spaces often require more in-depth evaluations and the use of moisture-tolerant primers.

Outdoor projects, like pool decks and patios, demand testing that accounts for seasonal moisture changes, while commercial kitchens and food service areas undergo enhanced assessments due to frequent washdowns and elevated humidity levels. When moisture readings exceed manufacturer recommendations, Croc Coatings doesn’t cut corners. Instead, they implement mitigation strategies to ensure the installation meets quality standards.

This customized approach means they can handle everything from residential basements to commercial warehouses and industrial floors. Their thorough pre-installation testing also supports their one-day installation process. By addressing moisture issues beforehand, they ensure the Penntek Evolution system cures properly, delivering its 4x strength advantage over traditional epoxy coatings.

Conclusion: MVER Testing Protects Your Coating Investment

MVER testing is a small upfront expense that can save you from costly coating failures down the line. Moisture-related issues in flooring projects rack up millions of dollars in damages annually across the U.S.. By addressing moisture concerns early, you can extend the life of your coating, maintain its appearance, and ensure your manufacturer’s warranty remains valid.

Why MVER Testing Matters for Property Owners

MVER testing helps uncover potential moisture problems before they escalate into expensive repairs. Skipping this critical step can lead to peeling, blistering, and delamination of coatings. Worse yet, neglecting testing may void warranties and leave you with hefty repair bills.

Manufacturers typically require MVER readings between 3–5 lb/1,000 sq ft/24 hr for safe coating application. If moisture levels exceed these thresholds, professional contractors can implement moisture mitigation strategies to ensure the coating performs as expected. Properly documenting these tests not only protects your warranty but also serves as proof of diligence if issues arise later.

The testing process itself is simple and affordable. For instance, the widely used calcium chloride test takes just 60–72 hours and costs far less than addressing a coating failure. For property owners installing coatings in garages, basements, patios, or commercial spaces, this proactive step ensures their investment delivers the durability and performance they expect.

Why Choose Croc Coatings for Your Project?

Croc Coatings takes moisture testing seriously, offering a thorough process that safeguards your investment. By utilizing both ASTM F1869 and ASTM F2170 protocols, they ensure optimal moisture control before installation. As a Penntek Certified Partner, Croc Coatings adheres to strict standards that protect both their workmanship and the manufacturer’s warranty. Their proprietary Penntek Evolution system provides four times the strength of traditional epoxy while maintaining an attractive, durable finish. Plus, their lifetime warranty reflects their confidence in the quality of their testing and installation.

Serving property owners across North Idaho and Eastern Washington, including Spokane and the Tri-Cities area, Croc Coatings brings professionalism to every project. Whether it’s a residential garage, a commercial kitchen, or an industrial warehouse, their dedication to moisture testing ensures your coating investment will last for years to come.

FAQs

Why is MVER testing important before applying concrete coatings?

Skipping Moisture Vapor Emission Rate (MVER) testing before applying concrete coatings can cause major problems like bubbling, peeling, or even complete coating failure. When moisture levels in concrete are too high, they weaken the bond between the coating and the surface, ultimately shortening its lifespan and effectiveness.

Performing MVER testing helps spot potential moisture issues early, allowing you to address them before applying the coating. This simple step ensures proper adhesion and long-lasting performance, saving you both time and money down the line. Plus, it helps preserve the look and functionality of your concrete surfaces. For reliable and durable solutions, Croc Coatings provides expert services using their advanced Penntek Evolution coating system, which comes with a lifetime warranty.

What is the difference between the calcium chloride test and relative humidity testing, and why are both important for assessing concrete moisture levels?

The calcium chloride test and relative humidity (RH) testing are two commonly used methods for assessing moisture in concrete, but they work in distinct ways. The calcium chloride test focuses on measuring the amount of moisture vapor released from the surface of the concrete over a set period. On the other hand, RH testing looks deeper, evaluating the internal moisture levels within the slab by using probes or sensors.

Combining these two methods offers a clearer picture of the concrete’s overall moisture condition. This approach is especially useful for identifying potential issues that could lead to coating failures. By ensuring proper moisture levels, protective coatings – like those offered by Croc Coatings – can bond effectively and provide long-lasting results. Accurate moisture testing is key to maintaining the durability and performance of concrete coatings in areas such as garages, patios, and basements.

Why is following ASTM standards crucial for MVER testing, and how can errors impact the success of a concrete coating project?

Adhering to ASTM standards during MVER (Moisture Vapor Emission Rate) testing is crucial for obtaining precise and dependable results. These standards offer clear instructions for measuring moisture levels in concrete, which play a key role in avoiding coating failures caused by excessive moisture.

Errors in MVER testing – like inadequate surface preparation or faulty measurements – can lead to incorrect evaluations of the concrete’s moisture condition. This can result in problems such as bubbling, peeling, or even delamination of the coating over time. By following proper testing procedures, you protect your investment and ensure a long-lasting, professional finish that stands the test of time.
