Epoxy Coatings: Common Abrasion Resistance Issues

October 22, 2025

Epoxy Coatings: Common Abrasion Resistance Issues

Epoxy coatings are durable and protect floors from wear caused by traffic, equipment, and debris. However, they can face issues like thinning from friction, UV-induced chalking, poor adhesion due to surface prep, and failure in high-impact areas. These problems often result from improper preparation, using the wrong product, environmental stress, or installation errors. Advanced systems, such as Croc Coatings‘ Penntek Evolution, offer stronger performance and durability, especially in demanding environments like garages and industrial spaces.

Key points to address these challenges include:

Using Epoxy Coatings with Solids Content to Resist Wear

Common Abrasion Resistance Problems in Epoxy Coatings

Even the best epoxy coatings can wear down under challenging conditions. Spotting the early warning signs is crucial to addressing issues before they escalate. Below, we’ll explore the most common problems – ranging from wear caused by traffic to UV-related chalking – that can compromise the durability of epoxy coatings.

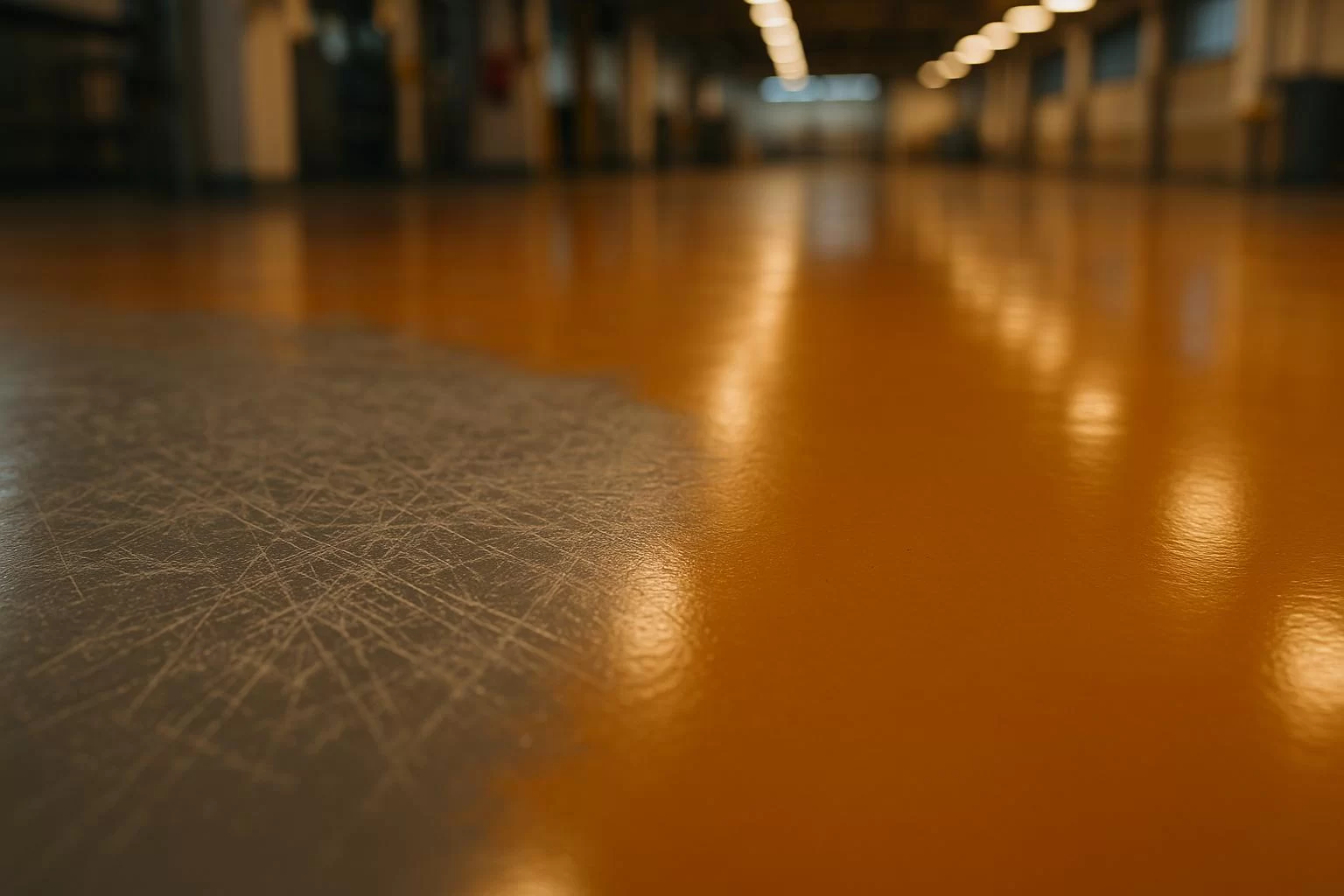

Surface Wear from Foot and Vehicle Traffic

In high-traffic areas like garages, warehouses, and commercial spaces, epoxy coatings often experience gradual thinning. This happens when hard particles scratch the surface or get embedded, creating small dents that can eventually turn into cracks.

In industrial environments, the presence of metal particles speeds up this wear. Over time, these forces leave visible marks, such as lighter-colored pathways, a dull surface, and even exposure of the concrete beneath. Residential garages face similar challenges, with areas near garage doors or parking spots showing wear tracks from repeated use.

Chalking and Breakdown from UV Exposure

Outdoor epoxy coatings are particularly vulnerable to UV rays, which weaken the resin’s molecular structure through a process called photodegradation. This leads to a chalky, powder-like surface that lacks strength. Pool decks and patios are prime examples, as they endure long hours of direct sunlight. Over time, this exposure causes the epoxy to chalk and lose its durability, making it less suitable for outdoor areas with constant sun exposure.

Hot summer temperatures make matters worse, accelerating the breakdown. Homeowners often notice a white, powdery residue on the surface, along with a faded, dull finish replacing the once-glossy look. This deterioration not only affects appearance but also reduces the coating’s ability to protect the surface beneath.

Poor Adhesion from Inadequate Surface Preparation

A common issue with epoxy coatings is poor adhesion, often caused by insufficient or improper surface preparation. If contaminants like oil stains aren’t thoroughly cleaned or the surface isn’t roughened enough, the coating may fail to bond properly. Even minor abrasion can lead to peeling in these situations.

This problem is especially noticeable in garage floors where oil or grease stains weren’t adequately removed before applying the coating. Lifting or peeling in localized areas is a telltale sign of adhesion failure.

Early Failure in High-Impact Areas

Standard epoxy coatings often fall short in high-impact zones, whether in residential garages or industrial facilities. Repeated impacts, heavy machinery, and fluctuating temperatures can overwhelm the coating’s strength, leading to early failure.

Commercial spaces also see similar issues in areas with concentrated foot traffic, rolling equipment, or frequent impacts, highlighting the need for tougher coatings in these demanding environments.

What Causes Abrasion Resistance Failures

Understanding the root causes of abrasion resistance failures sheds light on how each issue impacts the performance of epoxy coatings. Fortunately, most of these problems can be avoided with proper preparation and execution.

Poor Surface Preparation

When surfaces aren’t prepped correctly, problems are bound to arise. Dust, oil, and grease can prevent the epoxy from adhering properly, weakening the bond. If old coatings aren’t removed or the surface isn’t profiled correctly, barriers form that lead to peeling and faster wear. These missteps in preparation directly undermine the coating’s ability to resist abrasion.

Wrong Product Choice

Choosing the wrong epoxy for the job is another common pitfall. Standard epoxy formulations often lack the additives or properties needed to withstand high-traffic or industrial environments. Using a basic epoxy in these demanding settings can lead to early failure. For example, advanced systems like Croc Coatings’ Penntek Evolution are specifically designed for durability and perform well in spaces like garages, patios, pool decks, and industrial floors. Opting for the right product ensures the coating can handle the challenges of its environment.

Environmental Conditions

Epoxy coatings face a range of environmental challenges that can compromise their performance. UV exposure can cause chalking and degradation, leaving the surface more vulnerable to wear. Temperature fluctuations can lead to microcracks, which may result in delamination. Additionally, exposure to chemicals such as oils, solvents, or acids can weaken the epoxy’s structure, reducing its hardness and resistance to wear. Outdoor applications are particularly at risk, as they often deal with a combination of UV rays, temperature changes, and chemical exposure, all of which speed up deterioration.

Installation Mistakes

Even the best epoxy product can’t perform well if it’s installed incorrectly. Mixing ratios must be precise – any imbalance can result in incomplete curing, creating soft spots prone to wear. Applying the coating too thinly leaves the surface exposed to abrasion forces, allowing damage to reach the substrate more quickly. Insufficient curing time, whether due to premature use or poor conditions like high humidity, low temperatures, or inadequate ventilation, can also compromise the coating from the start. These installation errors weaken the epoxy, leaving it unable to withstand regular use. Addressing these issues during installation is crucial to ensuring long-lasting performance.

How to Fix Abrasion Resistance Problems

Solving abrasion resistance issues requires addressing each failure point with the right techniques and materials. Tackling the root causes of epoxy failure – from preparation to maintenance – ensures a durable and effective solution.

Correct Surface Preparation Methods

The foundation of a successful coating lies in proper surface preparation. Start by thoroughly cleaning the surface to remove all contaminants. Use degreasers and cleaning agents designed for the task, paying close attention to areas prone to oil stains, like parking spots. These stains can create invisible barriers that prevent the coating from adhering properly.

Check for moisture in the substrate using industry-standard testing methods. Trapped moisture can lead to blistering and premature coating failure, especially in high-traffic areas where abrasion forces are most intense.

To ensure optimal adhesion, roughen the surface using shot blasting or grinding. This step creates a texture that helps the coating bond securely, reducing the risk of peeling or delamination. Following these preparation steps sets the stage for a reliable and long-lasting coating.

Choosing Better Coating Systems

Not all epoxy coatings are designed for heavy-duty environments. For demanding applications, advanced systems like the Penntek Evolution industrial coating system are a better choice. This system is four times stronger than traditional epoxy and is specifically engineered for areas that endure high traffic, such as garages, patios, and industrial floors.

When selecting a coating, consider the specific challenges your floor faces. For example:

  • Heavy vehicle traffic may require coatings with enhanced durability.
  • Chemical exposure from oils or cleaning agents calls for coatings with superior chemical resistance.
  • UV exposure necessitates systems designed to withstand sunlight without degrading.

"Our process quickly transforms your garage or patio with a stylish, floor concrete coating that is 4x more durable than epoxy, and into a space you’ll love spending time in." – Croc Coatings

Investing in a high-performance coating system can save money in the long run by reducing maintenance needs and extending the floor’s service life. For instance, Croc Coatings’ Penntek system includes a lifetime manufacturer’s warranty, reflecting its reliability and durability. However, even the best coating requires proper application to deliver its full benefits.

Proper Application Methods

Precision is key when applying coatings. Start by following the exact mixing ratios for resin and hardener. Thoroughly blending the mixture ensures there are no unmixed areas, which could lead to weak spots.

For standard floors, apply a coating layer of 10–20 mils. In areas subject to high impact, consider using thicker layers to provide extra protection against abrasion. Uniform application is critical to avoiding weak points where the coating could fail.

Temperature and humidity also play a role. Apply coatings within a temperature range of 60–90°F and under low humidity to prevent issues like amine blush. Allow the coating to cure fully before use, as incomplete curing can weaken its hardness and resistance to abrasion. Regular upkeep after application ensures the coating remains effective over time.

Maintenance Requirements

Routine maintenance is essential for preserving the coating’s integrity. Clean the surface regularly using nonabrasive detergents. Avoid harsh chemicals and abrasive tools, as these can damage the coating. Promptly clean up spills to prevent chemical damage over time.

If you notice wear or damage, address it immediately. Clean and prepare the affected area before applying compatible repair materials. This ensures the repair blends seamlessly with the existing coating and restores full protection, keeping your floor in top condition for years to come.

Industry Standards and Guidelines

Understanding abrasion resistance standards is key to selecting the right coating system. These standards provide measurable benchmarks that show how coatings perform under real-world conditions. They also validate advanced solutions, such as Croc Coatings’ Penntek Evolution system, while emphasizing the importance of proper application techniques.

Abrasion Resistance Testing Standards

The coating industry uses several ASTM methods to measure abrasion resistance. One of the most recognized is ASTM D4060, known as the Taber Abrasion Test. This test evaluates weight loss by placing a sample on a rotating platform and applying abrasive wheels under a specific load. The weight loss after a set number of cycles indicates durability – lower weight loss equals better abrasion resistance.

Other standards include ASTM D1044, which focuses on transparent or plastic coatings, and ASTM D2486, which measures scrub resistance for coatings exposed to frequent cleaning.

In ASTM D4060 tests, standard epoxy coatings typically show weight loss values between 50 and 150 mg per 1,000 cycles. In comparison, high-performance systems like Croc Coatings’ Penntek Evolution achieve much lower values, highlighting their superior durability and extended service life.

Organizations like the Society for Protective Coatings (SSPC) and NACE International also provide guidelines for specifying abrasion-resistant coatings. These resources establish performance benchmarks for challenging environments.

Coating System Performance Comparison

Standardized tests allow for clear, data-driven comparisons between different coating systems. Here’s a quick look at how they stack up:

Coating System ASTM D4060 Weight Loss (mg/1,000 cycles) Durability Advantage Typical Applications
Standard Epoxy 100–150 Baseline Indoor industrial floors
Penntek Evolution 25–40 4x More Durable Garages, heavy traffic areas

This table highlights the exceptional performance of advanced systems like Penntek Evolution. Their enhanced abrasion resistance means longer service life and lower maintenance costs – especially valuable in regions like North Idaho and Eastern Washington, where freeze-thaw cycles and extreme temperatures test coating durability.

In addition to abrasion resistance, industry standards evaluate other properties like compressive strength, impact resistance, chemical resistance, and UV stability. High-performance coatings can achieve compressive strength values of up to 80 N/mm², far exceeding those of standard epoxies. For facilities, this translates to fewer repairs, longer recoating intervals, and reduced downtime, making systems like Penntek Evolution a smart long-term investment.

Conclusion

Addressing epoxy abrasion issues requires a combination of proper surface preparation, selecting the right products, careful application, and ongoing maintenance. Together, these steps help tackle common problems like surface wear from heavy traffic, UV-induced chalking, poor adhesion, and premature failure under impact.

It’s important to remember that not all coatings perform the same. While standard epoxy coatings may seem sufficient at first, they often fall short in high-demand environments where abrasion resistance is key. Thankfully, advanced coating formulations now offer enhanced durability and performance to meet these challenges.

Croc Coatings’ Penntek Evolution system is a standout solution, specifically designed to overcome the limitations of traditional epoxy. This industrial-grade coating improves mechanical strength and durability, enabling surfaces to handle heavy foot traffic, vehicle loads, and environmental stressors. This reduces wear patterns that would otherwise lead to frequent and costly repairs.

For property owners in North Idaho and Eastern Washington, where harsh freeze-thaw cycles and extreme weather conditions put coatings to the test, Penntek Evolution offers a smart investment. Its benefits include immediate performance improvements, extended floor life, and cost savings over time. Plus, the one-day installation process minimizes inconvenience, and the lifetime warranty ensures long-term protection against abrasion-related failures.

"Our process quickly transforms your garage or patio with a stylish, floor concrete coating that is 4x more durable than epoxy, and into a space you’ll love spending time in." – Croc Coatings

These advantages make advanced systems like Penntek Evolution ideal for residential garages, commercial spaces, and industrial floors, delivering longer service life and reduced maintenance costs.

FAQs

How can I properly prepare a surface before applying epoxy coatings?

Proper surface preparation plays a key role in achieving a long-lasting and effective epoxy coating. Begin by thoroughly cleaning the surface to eliminate dirt, grease, or any old coatings. Once clean, address cracks or imperfections by repairing them to create a smooth, even foundation. Finally, use mechanical techniques such as diamond grinding or shot blasting to roughen the surface. This step enhances the epoxy’s ability to bond securely.

By following these preparation steps, you can avoid problems like peeling or weak abrasion resistance, ensuring the coating remains durable over time.

How does UV exposure impact the durability of epoxy coatings when used outdoors?

Epoxy coatings have a known limitation: they don’t hold up well under prolonged sunlight exposure. Over time, UV rays can cause them to yellow, fade, or even become brittle. This not only affects their appearance but also their durability, making them less ideal for outdoor use.

If you’re looking for a tougher, more UV-resistant option, Croc Coatings has you covered with the Penntek Evolution industrial coating system. This system is built to handle harsh outdoor conditions and is four times stronger than traditional epoxy. It retains both its strength and visual appeal even under constant sunlight, making it a fantastic choice for outdoor areas like patios, pool decks, and similar spaces.

Why is the Penntek Evolution coating system better suited for high-traffic or industrial areas compared to standard epoxy?

The Penntek Evolution industrial coating system, available through Croc Coatings, is built to withstand the challenges of high-traffic and industrial areas. Compared to standard epoxy, this system is 4x stronger, making it highly durable and resistant to wear and tear – perfect for spaces like garages, patios, and industrial floors.

With its impressive strength and lasting performance, it’s a go-to choice for environments that demand a tough, dependable surface. And thanks to Croc Coatings’ expert installation, you’ll get a smooth, polished finish that’s backed by a lifetime warranty for added peace of mind.
