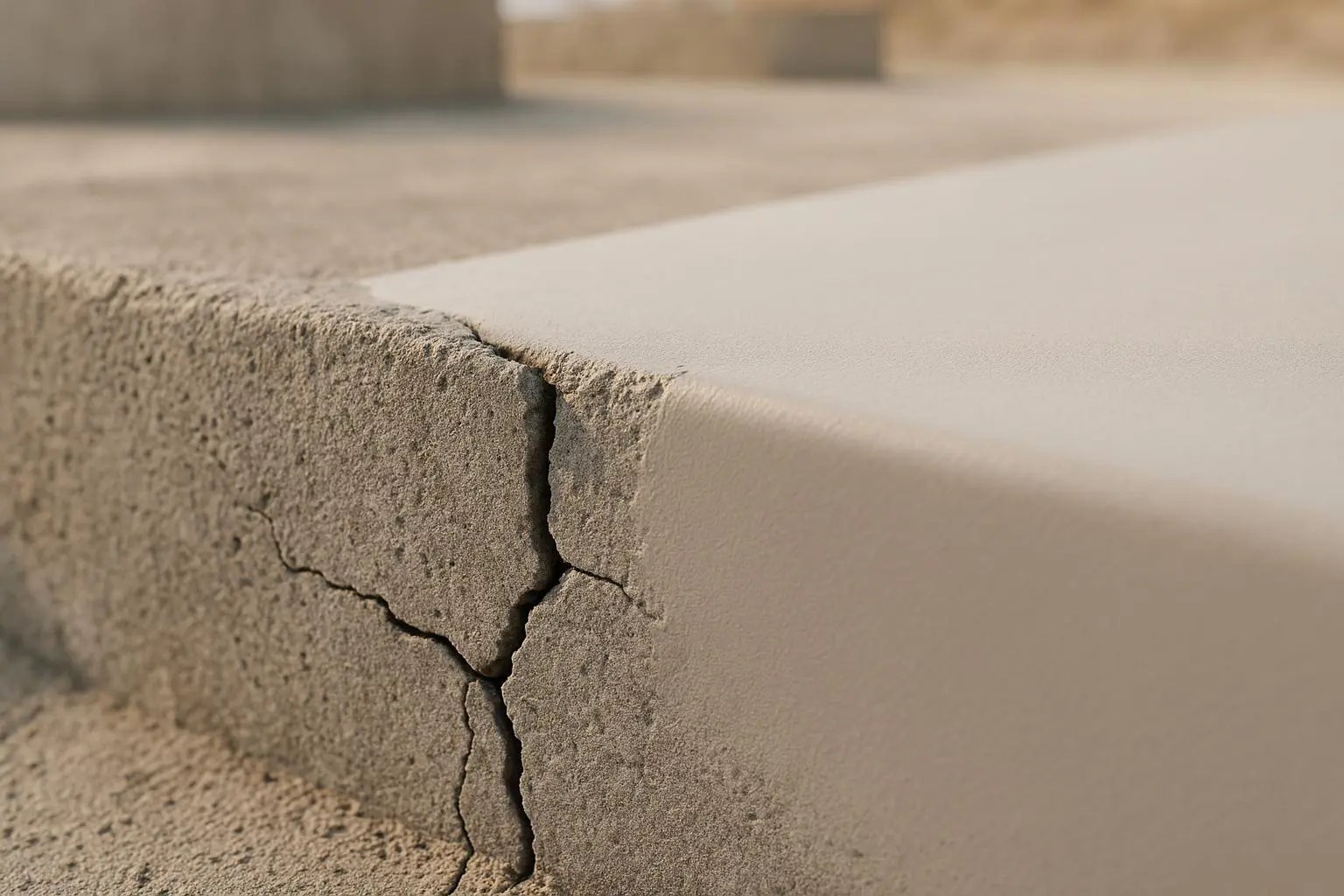

Concrete cracks are inevitable due to temperature shifts, settling, or heavy loads, but the right coatings can prevent small cracks from turning into costly repairs. Crack bridging standards, such as ASTM C1305 and EN 1504-2, ensure coatings can stretch across cracks without breaking, protecting concrete from water, chemicals, and freeze-thaw damage.

Key points:

• Static cracks are stable; dynamic cracks move with environmental or structural changes.
• Standards like ASTM C1305 and EN 1504-2 test coatings for flexibility and durability under stress.
• Products like Croc Coatings’ Penntek Evolution system are designed to handle extreme conditions, such as freeze-thaw cycles in North Idaho and Eastern Washington.

Crack Bridging In A Car Park

What is Crack Bridging and Why Does it Matter?

Crack bridging refers to a coating’s ability to stretch across cracks in concrete without breaking or losing its grip. This creates a seamless protective layer that blocks water and other contaminants from seeping in. Think of it as a flexible seal that adjusts to the natural shifts and movements of concrete. This property becomes especially important when concrete experiences changes due to temperature swings, settling, or heavy loads. Without crack bridging, even the best coatings can fail under these conditions, leaving the surface exposed to damage – and potentially leading to costly repairs.

How Crack Bridging Works

Flexible coatings are designed to protect concrete by adapting to movements caused by settling, temperature changes, or structural stress. Their performance hinges on two key factors: elasticity and tear strength. For instance, the Deckshield ED polyurethane flooring system, with its 2-mm thickness, achieves an A3 classification at -4°F. This means it can bridge cracks ranging from 0.5 to 1.25 mm wide. A thinner system, like Deckshield ID at 1.5 mm, can handle cracks between 0.25 and 0.5 mm wide.

This flexibility is particularly crucial for dynamic cracks – those that widen and narrow over time. The coating must repeatedly stretch and contract without wearing out. If it can’t keep up, the durability of the entire system is compromised, as we’ll see when examining the problems caused by inadequate crack bridging.

Problems Caused by Poor Crack Bridging

When coatings lack proper crack bridging, they can split or tear at the crack site, creating entry points for water, chemicals, and other contaminants. In areas like North Idaho and Eastern Washington, where freeze-thaw cycles are frequent, this becomes a major issue. Water trapped in cracks freezes and expands, leading to further cracking and faster deterioration. On top of that, chemicals like deicing salts, automotive fluids, and cleaning agents can seep through damaged coatings, causing surface spalling and weakening the concrete beneath.

These failures aren’t just about structural damage – they can also lead to higher repair costs, ongoing maintenance headaches, and even liability issues. Worse yet, when water and chemicals reach the reinforcing steel inside the concrete, corrosion can set in, threatening the entire structure’s stability. That’s why it’s so important to meet specific performance standards for crack bridging.

Croc Coatings’ Penntek Evolution system tackles these challenges head-on. Its proprietary formulation is four times stronger than traditional epoxy while still offering the flexibility needed to handle the extreme conditions of North Idaho and Eastern Washington. This ensures a durable solution that helps prevent the chain reaction of problems caused by poor crack bridging.

Standards That Control Crack Bridging for Concrete Coatings

When it comes to addressing the challenges of crack bridging in concrete coatings, standardized testing plays a key role. These standards establish clear benchmarks for performance, helping contractors and property owners choose coatings that can reliably handle crack movement over time.

Some of the most recognized standards include ASTM C1305 in the United States, EN 1504-2 in Europe, and international standards like ISO 16700 and EN 1062-7. Each of these focuses on specific aspects of crack bridging, offering methods to evaluate how coatings perform under real-world conditions. Let’s take a closer look at these standards and their testing methodologies.

ASTM C1305: Testing Crack Bridging in Waterproofing Membranes

ASTM C1305 outlines a laboratory method for assessing how well liquid-applied waterproofing membranes can bridge cracks in concrete. This U.S. standard is particularly relevant for waterproofing applications, providing a controlled way to measure coating durability.

The test involves applying the coating to a concrete surface with a pre-formed crack. The setup is then subjected to controlled movement to see if the coating can stay intact. This test is especially crucial in areas with frequent freeze-thaw cycles, where crack movement can be more pronounced.

EN 1504-2: European Standards for Concrete Protection

EN 1504-2 offers a broad framework for concrete protection, addressing performance requirements for coatings in various applications. It covers crack bridging, moisture control, and resistance to physical and chemical damage.

This standard sets specific thresholds for crack bridging performance, detailing how much movement a coating must tolerate without failing. Its classification system allows contractors to match coating capabilities with the expected environmental conditions and structural demands of a project.

Other Testing Standards (ISO 16700, EN 1062-7)

In addition to ASTM and EN standards, ISO 16700 and EN 1062-7 provide further guidance on crack bridging performance. EN 1062-7, often referenced by EN 1504-2, focuses on resin-based coatings and includes a crack width classification system (ranging from A1 to A5). This system is particularly useful for evaluating coatings in outdoor, climate-exposed areas. Meanwhile, ISO 16700 offers alternative testing methods, giving manufacturers and contractors more tools to assess coating performance.

Together, these standards create a robust framework for evaluating coatings under diverse conditions, ensuring they meet the rigorous demands of real-world applications.

Standard	Region	Focus Area	Test Method	Typical Applications
ASTM C1305	U.S.	Waterproofing membranes	Laboratory crack bridging test	Residential, commercial, bridges
EN 1504-2	Europe	Concrete protection	EN 1062-7 crack bridging test	Parking decks, industrial floors
EN 1062-7	Europe	Coating flexibility	Crack width classification (A1-A5)	Outdoor, climate-exposed areas
ISO 16700	International	Crack bridging evaluation	Alternative test methods	Various concrete structures

For contractors working in demanding environments – such as the freeze-thaw cycles of North Idaho and Eastern Washington – these standards provide essential guidance for selecting coatings that maintain their protective properties over time. Products like Croc Coatings’ Penntek Evolution system, engineered to be four times stronger than traditional epoxy, demonstrate how these standards validate advanced coating technologies for reliable, long-term performance.

sbb-itb-a0e5ae3

How Crack Bridging Performance is Tested and Rated

Laboratory tests designed to mimic real-world conditions help property owners and contractors choose coatings based on their crack bridging performance.

Crack Bridging Ability (CBA) Test Process

The Crack Bridging Ability (CBA) test evaluates how effectively a coating can handle crack movement under controlled conditions. To start, a coating sample is applied to a substrate with an artificial crack. After curing, the crack is gradually widened under specific conditions. The test ensures the coating retains its flexibility, adhesion, and structural integrity as the crack expands. Key variables like crack opening speed, humidity, substrate type, and temperature (commonly set at -4°F [-20°C] to simulate harsh winters) are carefully managed to replicate real-world stressors.

Additionally, the test examines the coating’s durability against environmental challenges such as moisture, chemicals, and temperature shifts. These results are then used to rate the coating’s performance, providing a standardized way to compare products.

Performance Rating System

After testing, coatings are categorized into performance classes based on the maximum crack width they can bridge without failing. Standards such as EN 1504-2 and EN 1062-7 define these classifications, helping contractors match coatings to specific project needs. For instance:

• Class A3 coatings: Designed for demanding conditions, they can bridge cracks between 0.5 and 1.25 mm. These are ideal for exposed surfaces like outdoor parking decks.
• Class A2 coatings: Suitable for moderate crack movement, bridging cracks from 0.25 to 0.5 mm. These work well for underground garage floors and similar applications.

Real-world examples illustrate these ratings in action. The Deckshield ED polyurethane system, with a thickness of 2 mm, earns a Class A3 rating, while the Deckshield ID system, at 1.5 mm thickness, achieves a Class A2 rating.

Performance Class	Crack Width Range	Temperature Tested	Typical Applications
Class A3	0.5–1.25 mm	-4°F (-20°C)	Outdoor parking decks, exposed surfaces
Class A2	0.25–0.5 mm	-4°F (-20°C)	Underground garages, intermediate floors
Class A1	<0.25 mm	Room temperature	Indoor floors, areas with minimal movement

Polyurethane systems often outperform traditional epoxy coatings due to their superior flexibility. This is especially crucial in regions like North Idaho and Eastern Washington, where seasonal temperature swings cause ongoing crack movement. These classifications help contractors select coatings tailored to the environmental challenges of such areas.

For projects in extreme climates, performance ratings are a critical tool for choosing the right coating. Advanced systems like Croc Coatings’ Penntek Evolution go beyond standard epoxy coatings, offering enhanced crack bridging capabilities. Their ability to maintain structural integrity through repeated freeze-thaw cycles and temperature extremes makes them a reliable choice for the Pacific Northwest.

Using Crack Bridging Standards in Real Applications

When applying coatings, it’s essential to match their performance to the specific conditions of the substrate, the environmental demands, and the expected service life.

Selecting Coatings Based on Crack Bridging Needs

Choosing the right coating begins with a thorough evaluation of existing cracks and expected movement. For dynamic cracks, highly flexible coatings, such as polyurethane-based systems, are typically required. On the other hand, static cracks can be addressed with less flexible options. It’s important to carefully assess the crack conditions, expected movement, and the physical properties of the coating to ensure the right match.

Thickness and tensile strength are key factors for effective crack bridging. A coating that’s too thin might fail to bridge cracks, while an overly thick layer can lead to other performance issues. Application methods must achieve uniform coverage and proper adhesion, often requiring surface preparation to meet a specific Concrete Surface Profile (CSP 2-5, as outlined in ICRI 310.2R).

Start by determining the maximum crack width and potential movement in the substrate, accounting for both existing cracks and future shifts caused by environmental factors. Contractors should then consult the technical data sheets provided by coating manufacturers to verify crack bridging classifications. These classifications must meet or exceed the demands of the anticipated crack width and temperature range.

This attention to technical details becomes even more critical in regions with challenging climates, as discussed below.

Climate Factors in North Idaho and Eastern Washington

The climate in North Idaho and Eastern Washington presents unique challenges for crack bridging due to its extreme conditions. The region experiences repeated freeze-thaw cycles and significant temperature fluctuations, which cause concrete to expand, contract, and crack over time. As a result, coatings in this area must offer low-temperature flexibility, typically rated to perform down to -4°F (-20°C), to withstand the harsh winters.

Unsealed cracks can allow water and salt to penetrate, accelerating deterioration and leading to corrosion of steel reinforcements. This is especially problematic in the Pacific Northwest, where freeze-thaw cycles can quickly turn minor coating failures into major structural concerns. To prevent water penetration, coatings must retain their flexibility and adhesion properties even under these extreme temperature variations.

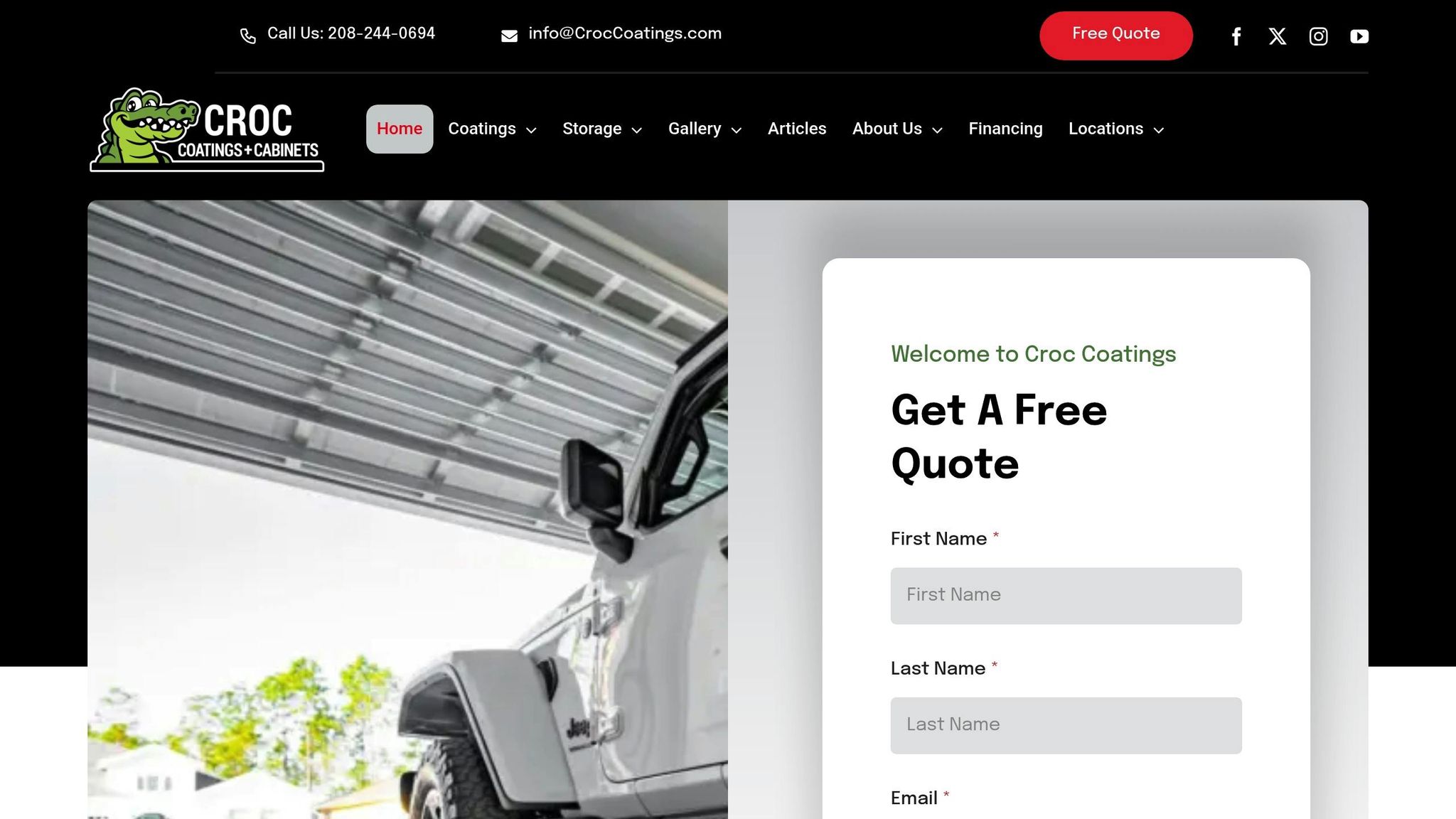

Croc Coatings‘ Penntek Evolution System Performance

The Penntek Evolution system stands out as a solution designed to handle these environmental demands. It is 4x stronger than standard epoxy coatings and maintains its flexibility and adhesion through freeze-thaw cycles and exposure to de-icing salts.

Unlike traditional epoxy systems that tend to become brittle in cold conditions, the Penntek Evolution system is built to endure. Its flexibility and resistance to damage from de-icing salts and heavy traffic make it ideal for surfaces such as garage floors, patios, pool decks, and industrial flooring in this region.

The system also comes with a lifetime manufacturer’s warranty, offering peace of mind and long-term reliability. This warranty is particularly valuable in climates where coating failure can lead to costly repairs or premature concrete replacement. By investing in a high-performance system like Penntek Evolution, property owners can benefit from reduced maintenance costs, prevention of structural damage, and an extended lifespan for their concrete surfaces.

For contractors and property owners in North Idaho and Eastern Washington, the Penntek Evolution system provides a durable, performance-driven solution. Its ability to handle both current and future crack challenges, combined with its resilience in extreme conditions, makes it a dependable choice for residential and commercial applications alike.

Conclusion

Following crack bridging standards is key to protecting your investment and ensuring your concrete surfaces stand the test of time. When coatings meet recognized benchmarks like ASTM C1305 or EN 1504-2, they guarantee durability and the ability to handle real-world challenges without cracking or failing.

Certified coatings do more than just look good – they shield against water infiltration, spalling, and reinforcement corrosion, helping you avoid expensive repairs and disruptions. For businesses, this means minimizing downtime, while homeowners enjoy low-maintenance, long-lasting surfaces that maintain their appeal.

Standards also provide clear, measurable guidelines, empowering both contractors and consumers to choose the right coating for specific needs and climates. In areas prone to harsh freeze-thaw cycles, such as North Idaho and Eastern Washington, high-performance coatings aren’t a luxury – they’re a necessity. Croc Coatings’ Penntek Evolution system, for example, offers four times the strength of traditional epoxy, the flexibility to handle extreme conditions, and the peace of mind that comes with a lifetime warranty.

"Quality Concrete Coatings That Are Engineered to Perform & Built to Last"
– Croc Coatings

This quote reflects the dedication to delivering reliable, high-quality solutions. By choosing rigorously tested and certified systems, you’re not just applying a coating – you’re investing in long-term protection and performance for your concrete surfaces.

Whether you’re enhancing a residential garage or fortifying a commercial space, the decision is straightforward: opt for coating systems that meet established crack bridging standards. The payoff is years of dependable protection for both your surfaces and your budget.

FAQs

What do the ASTM C1305 and EN 1504-2 standards evaluate when testing the crack-bridging performance of concrete coatings?

The ASTM C1305 and EN 1504-2 standards play a key role in evaluating how well concrete coatings can bridge cracks. These standards are designed to test a coating’s ability to stretch or flex, ensuring it can effectively cover cracks on concrete surfaces. This capability is crucial for maintaining durability and protection in both residential and commercial settings.

By replicating real-world scenarios – like temperature fluctuations and structural shifts – these tests confirm whether a coating can hold up over time. This is particularly important in high-stress areas such as garage floors, patios, or industrial spaces, where heavy usage or environmental conditions can lead to cracking.

What happens if a concrete coating doesn’t meet crack bridging standards in areas with harsh climates like North Idaho and Eastern Washington?

Using a concrete coating that falls short of crack bridging standards can spell trouble, particularly in areas with dramatic temperature swings like North Idaho and Eastern Washington. Concrete naturally expands and contracts with these changes, and without the flexibility to accommodate this movement, coatings can crack, peel, or even fail entirely over time.

That’s why choosing a high-quality option matters. Products like the Penntek Evolution industrial coating system, available through Croc Coatings, are built to withstand these tough conditions. Designed for durability and performance, they offer a dependable and stylish solution for residential and commercial spaces alike, even in the harshest climates.

What makes the Penntek Evolution system ideal for areas with frequent freeze-thaw cycles compared to traditional epoxy coatings?

The Penntek Evolution system is built to tackle the tough conditions brought on by frequent freeze-thaw cycles. Its unique flexibility and toughness allow it to adapt to temperature shifts, minimizing the chances of cracking or peeling. Unlike traditional epoxy coatings, which often fall short in these environments, this system provides a more dependable solution for lasting performance.

On top of that, it delivers excellent adhesion and resists moisture, keeping your concrete surfaces safeguarded and visually appealing even in extreme weather. This makes it a standout choice for regions like North Idaho and Eastern Washington, where freeze-thaw cycles are a regular challenge.
